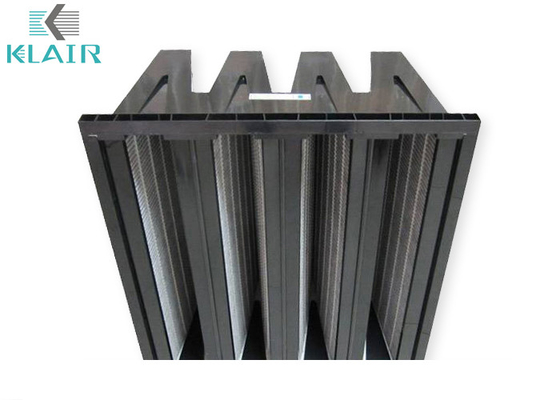

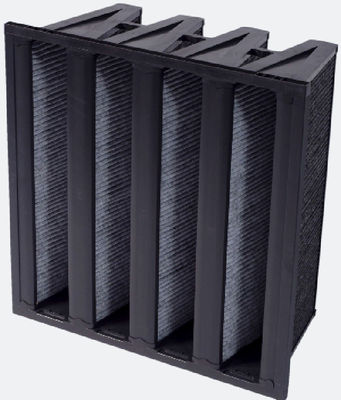

Carbon Cloth V Type Combined High Efficiency Air Filter Plastic Frame Pleated

Plastic frame pleated carbon cloth V type combined high efficiency air filter

Product Description

The XI-FU MZV series of Activated Carbon Filter removal of gases, vapors and odors in make-up and recirculated air in cleanrooms and other
applications. This activated carbon filter media consists of a very fine granular carbon (90% activity) with 600 grams per square meter. The
granulars are bonded to a fine PP+PET non-woven fiber substrate which is sealed within a sleeve of spun bonded synthetic scrim to prevent
carbon dusting. No post filter is needed to contain particle shedding often associated with carbon filters.
It is suitable for exhaust gas filtration in various ventilation systems, air conditioning systems and dust removal systems, as well
as the purification of indoor odors or toxic gases.

Features

1. Low flow resistance
2. Large dust holding capacity
3. Environmental and easy recovery
4. Low initial pressure drop, long lifetime
5. Various thickness available: 21mm, 25mm, 46mm, 96mm,etc

Technical Data Sheet

Frame: Aluminum / Galvanized Plate/ Stainless steel/ ABS plastic
Media: PP melt blown / fiberglass /PTFE
Proctective net: Aluminium net/White Galvanized net
Size: as per customer's requirement
Temperature resistance: ≤100ºC;
Moisture resistance(relative humidity): ≤80%RH.

Parameters Table


​​
