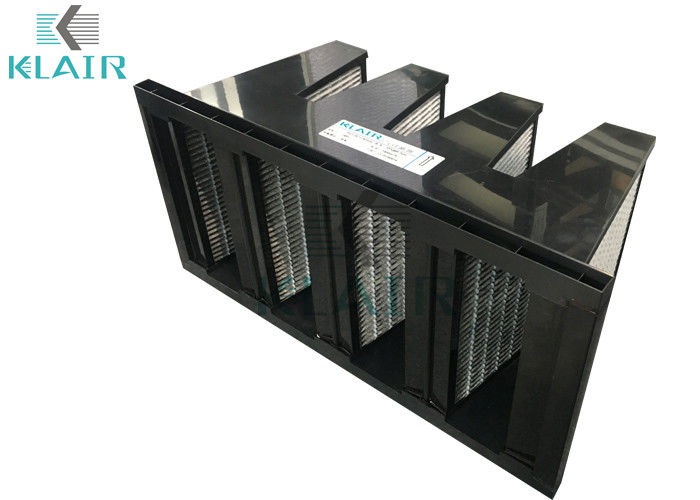

KLAIR Mini Pleated Activated Carbon Air Filter For Ventilation System

KLAIR Mini Pleated Activated Carbon Air Filter For Ventilation System

Description:

The K-Odor High Capacity Activated Carbon Filters removal of gases, vapors and odors in make-up and recirculated air in cleanrooms and other applications is taking on new significance to provide the required level of air quality for products, processes and people. K-Odor filters offer the latest technology in AMC control not only in low level concentrations, but also for intermittent spikes of higher concentrations up to 5ppm.
Process deisgner, facilities engineers and quality control managers in critical manufacturing industries, such as microelectronics, cleanrooms and pharmaceuticals are becoming increasingly sensitive to the need for chemical filtration to remove low level concentrations of gases, refereed to as Airborne Molecular Contamination.

Sealed Carbon Media Provide Clean Product, No Carbon Dusting

K-odor media consists of a very fine granular carbon (90% activity) with 600 grams per square meter. The granulars are bonded to a fine PP PET fiber substrate which is sealed within a sleeve of spun bonded synthetic scrim to prevent carbon dusting. No post filter is needed to contain particle shedding often associated with carbon filters.


Specifications:

Actual Size(WxHxD): 595x595x292mm
Actual Size(WxHxD): 595x287x292mm
Actual Size(WxHxD): 287x595x292mm

Description:

• Media: Sandwich PP PET + Activated Carbon
• Separator:Hot-melt beads
• Frame: GI;Plastic
• Efficiency: MERV 13
• Initial resistance: 110 Pa
• Recommended final pressure drop : 400Pa
• Humidity resistance: 100%
• Max Temperature: 80 ℃
• Sealant: Polyurethane rubber PU
• DIN 53438 Flammability: F1
• UL 900 Standard :  Class 2
• Max.air flow rate:  125% of rated air flow
• Gasket: one piece half round continuous gasket
• Available in Box or Single flange type.


Competitive Advantage:


• High carbon loading
• High activity carbon
• Low initial resistance.
• Clean operation, lowest carbon shedding
• Low energy consumpation
• Easy to retrofit with standard filter hardware.
