KLAIR FILTRATION TECHNOLOGY CO.,LTD
Place of Origin: | China |
Brand Name: | Klair |
Certification: | ISO16890 |
Model Number: | WashPak ® GTR |
Minimum Order Quantity: | 1 |
---|---|
Price: | US$ 1-10 |
Packaging Details: | Carton |
Delivery Time: | 10-15days |
Payment Terms: | T/T, D/P, Western Union, D/A, L/C, MoneyGram |
Supply Ability: | 500 pcs pre week |
Medium Material: | Synthetic Fiber/polyester Fiber | Frame: | Aluminum Alloy/Galvanized Plate/stainless Steel |
---|---|---|---|
Efficiency Grade: | G3/G4 | Max. Humidity: | ≤100%RH |
Max. Temperature: | Synthetic Fiber≤120ºC | Filter Object: | Particles ≥ 5 Microns |
High Light: | G4 Efficiency Air Pre Filter,G3 Air Pre Filter,Synthetic Fiber Bag Air Filters |

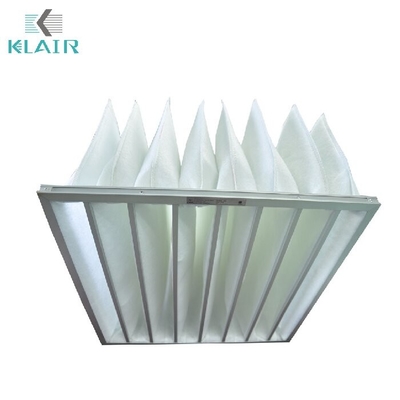

Synthetic Fiber Pocket Bag Air Pre Filter for Air Conditioning System
Product Description
Primary bag filter is made of synthetic fiber with gradually increasing density and strong toughness. It adopts seamless welding technology and has good air tightness and binding strength, so as to avoid air leakage or cracking when the air pressure is high.
Pocket filter is specially designed for better and steady air filtration efficiency. The dimensions of the filter can be altered based on clients requirements. Pocket filter is applicable to clean room system of food industry, pharmaceutical industry, electronics industry and ventilation system of industrial plant as well as commercial building.
Features
1. Large media area and dust holding capacity
2. Big air flow, low resistance, high efficiency
3. 100% factory inspection
4. Third party authority certification (VTT test)
5. Relative humidity up to 100%
6. Imported synthetic fiber material
Technical Data Sheet
Medium Material: Synthetic Fiber/polyester Fiber
Efficiency Grade: G3/G4
Frame: Aluminum alloy/Galvanized plate/stainless steel
Filter Object: Particles ≥ 5 microns
Wet Tolerance (Relative Humidity): ≤100%RH
Instantaneous Temperature Resistance: Synthetic fiber≤120ºC
Parameters Table
PART NUMBER | W X H X D | NO OF POCKETS | AIR FLOW (M3/H) |
INI.RESISTA NCE (PA) |
GTA-242436 | 592x592x360 | 6 | 3400 | 55 |
GTA-202435 | 490x592x360 | 5 | 2800 | 55 |
GTA-122433 | 287x592x360 | 3 | 1650 | 55 |
GTA-242456 | 592x592x500 | 6 | 4200 | 55 |
GTA-202455 | 490x592x500 | 5 | 3400 | 55 |
GTA-122453 | 287x592x500 | 3 | 2000 | 55 |
Contact Person: Vicky Mo
