KLAIR FILTRATION TECHNOLOGY CO.,LTD
Place of Origin: | China |
Brand Name: | Klair |
Certification: | ISO16890 |
Model Number: | BlackGuard ® HC |
Minimum Order Quantity: | 1 |
---|---|
Price: | US$ 10-100 |
Packaging Details: | Carton |
Delivery Time: | 10-15days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 pcs pre week |
Features: | Large Air Flow With Low Resistant | Media: | Activated Carbon Granule Media, Activated Alumina With Potassium |
---|---|---|---|
Frame: | Plastic, Galvanized Steel | Max.Constant Temperature: | 52℃ (125℉) |
Media Type: | Chemical | Activated Carbon: | Granule With Coconut Shell Or Coal |
High Light: | Activated Carbon Granule Compact Air Filter,Galvanized Steel Frame Compact Air Filter,ISO16890 Activated Carbon Air Filter |

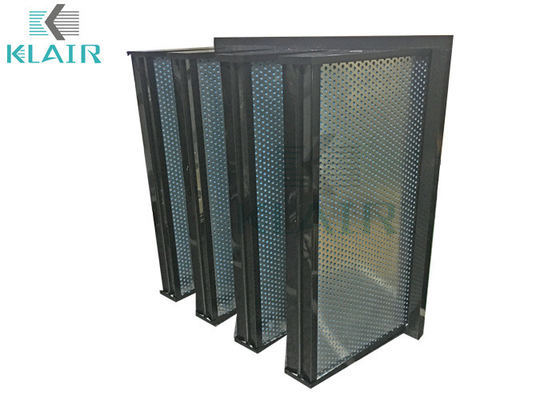

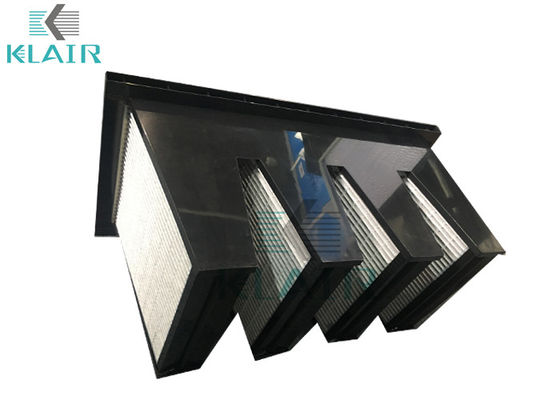

Plastic/Galvanized Steel Frame Activated Carbon Granule V Bank Compact Air Filter
Product Description
Activated carbon Compact Filter by using activated carbon particles and a composite of microfine synthetic fibers to effectively remove harmful substances from the air.
Especially designed for central air conditioning and central ventilation system, eliminate the odor (smell) and harmful gases in air. A variety of special activated carbon materials can be provided according to the actual needs, effectively absorb gases such as VOC, acid gas, alkaline gas, formaldehyde, mercury vapor as well as radioactive gases.
Features
1. Large Air Flow with low resistant
2. V-type activated carbon filter has large filtration area
3. Strong adsorption capacity, high removal efficiency and reliable performance
4. Light weight easy, installation and maintenance
Technical Data Sheet
Material: Activated carbon granule media, Activated Alumina with potassium
Activated Carbon: Granule with Coconut Shell or Coal
Frame Material: Plastic, Galvanized steel
Media Type: Chemical
Max.Constant Temperature: 52℃ (125℉)
Parameters Table
PART NUMBER | NO. OF PAD | W X H X D (INCH) |
W X H X D (MM) |
UNIT WEIGHT (KGS) | AIR FLOW (M3/H) |
INITIAL PRESSURE ( PA) |
CFHC-242412 | 8 | 24x24x12 | 595x595x292 | 23 | 4000 | 85 |
CFHC-242012 | 6 | 20x24x12 | 495x595x292 | 18 | 3400 | 85 |
CFHC-241212 | 4 | 12x24x12 | 293x595x292 | 12 | 2100 | 85 |
