KLAIR FILTRATION TECHNOLOGY CO.,LTD
|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||200 pcs pre week|
|Materials:||304 Stainless Steel||Noise:||0-20db|
|Internal Size:||430*520*470mm||LED Lamp:||8W *1 PCS|
|Interlock System:||Electromagnetic Interlock System||Sterilization Lamo:||15W* 1PCS|
20db Pass Thru Box,
SUS304 Pass Thru Box,
Electromagnetic Interlock Pass Box

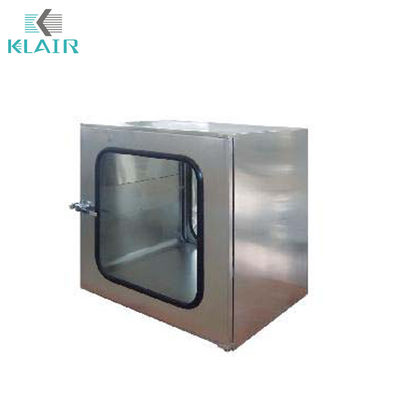

Built-in Electromagnetic Interlock Stainless Steel Pass Thru Box Transfer Window
Static Pass Box For Clean Room (also pass through box) is an auxiliary device for clean room. It is mainly used for transferring of small items between clean areas of different classes of cleanliness, also between clean area and non-clean area, to reduce the number of times the clean room is opened, and to reduce the possibility of polluting the clean room to a minimum level. The pass box is made of stainless steel and is plain and smooth. The double doors are interlocked to each other to effectively prevent air exchange and cross-contamination. They are equipped with electronic or mechanical interlocking devices and ultraviolet germicidal lamps. Mainly used in pharmaceutical, microelectronics, health food and beverage fields.
1. stainless steel 304 material, the internal arc structure, easy to clean.
2. With PAO injection interface and test interface, using 304 stainless steel quick connector
3. Equipped with H14 liquid tank sealed high-efficiency filter with high-efficiency differential pressure gauge.
4. with ultraviolet germicidal lamp, sterilization time can be adjusted arbitrarily, and with sterilization timer and sterilization time accumulation function can be arbitrarily set whether the germicidal lamp and the fan start at the same time.
5. Self-developed LCD panel controller with two magnetic locks interlocking. There are two types of automatic and manual for users to set. In the automatic mode, users can set multiple functions by themselves, with time and function display, and call function.
6. It can be set to automatically start the fan supply mode at the same time after closing the door.
Technical Data Sheet
Materials: 304 Stainless steel
Outside Size: 600*600*600mm
Internal Size: 430*520*470mm
Interlock System: Electromagnetic interlock system
Sterilization Lamo: 15W* 1PCS
LED Lamp: 8W *1 PCS
|TYPE||DYNAMIC PASS BOX||STATIC PASS BOX|
|SIZE ( W X D X H.MM)||940 x 600 x 1450||1140 x 800 x 1550||760 x 600 x 690||860 x 700 x 790|
|HEPA FILTER SIZE ( .W X D X H.MM)||600 x 600 x 600||800 x 800 x 800||600 x 600 x 600||700 x 700 x 700|
|CLEANLINESS OF LOCALIZED AIR||Class 100 or equivalent as per Federal standard 209E||/||/|
|HEPA FILTER EFFICIENCY||99.99% (Standard), 99.995%, 99.99995%||/||/|
|AIR VELOCITY (M/S)||0.45M/S or 90 FPM||/||/|
|FAN RUN (R/MIN)||1690||1690||/||/|
|AVERAGE AIR FLOW (M3/H)||1200||1200||/||/|
|POWER SUPPLY||AC, 1 PH, 220V, 50/60Hz||/||/|
|POWER CONSUMPTION ( APPROX.)||285W||330W||/||/|
|PRE-FILTER||Synthetic fiber with an arrestance of 85%||/||/|
|CONSTRUCTION||CASING||Powder baked epoxy finishing steel or Stainless steel|
