KLAIR FILTRATION TECHNOLOGY CO.,LTD
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | Klair Filter |
| Certification: | ISO 16890 |
| Minimum Order Quantity: | 1per |
|---|---|
| Price: | USD25-35 |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 500pieces/everyday |
| Product Name: | Air Shower | Type: | Clean Room Air Shower |
|---|---|---|---|
| Function: | Clean Work Room | Usage: | Dust-Free Clean Room |
| Size: | Customized Size | Power: | AC,1 PH,220V,50/60Hz Or AC,3 PH,380V,50/6OHz |
| Transport Package: | Wooden Case | Specification: | Custom |
| High Light: | 60Hz Air Shower Clean Room,1PH Air Shower Clean Room,Dust Free Cleanroom Air Shower |
||

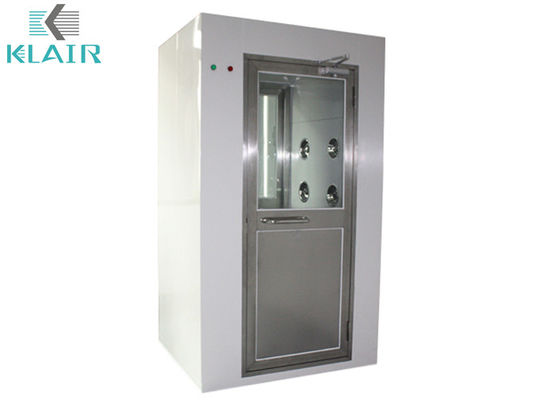

Air Shower Clean Room
Applications:
Petrochemical Industry, Precision Electronic Industry, Metallurgical Industry, Pharmaceutical,Food Industry, Precision Industry
The air shower is a necessary passage for people to enter and exit the clean room. It can reduce the pollution problems caused by people entering and exiting the clean room, and at the same time, it plays the role of airlock room to seal the clean room.
The fully automatic high-tech intelligent air shower room produced by our company is equipped with a voice prompt system.The automatic voice system prompts people to complete the entire blowing and dust removal process in an orderly manner to achieve an effective purification effect.

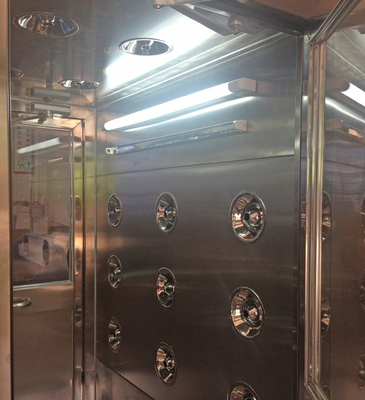

The clean airflow filtered by the high-efficiency HEPA filter is sprayed on the person from all directions by the rotatable nozzle, which effectively and quickly removes dust particles.
Features:
Chamber Material is A3 cold rolled stainless steel plate. The bottom floor adopt sanding stainless steel plate.
It is equipped with G4 primary filter and H13 mini pleat HEPA Filter to ensure ideal air clean class.
The shower is activated by infrared induction. The various angle and adjustable SS nozzles are equipped on left and right side.
The low noise fan can generate air velocity of 20-25m/s on straight direction.
Air shower time: 0-99S, LCD time indicator adjustable and it is visible and the system will remind by voice.
Power voltage: 110/220/380V, 50/60 Hz, automatic induction, friendly voice remind system.
Specifications:
Applicable Object:People Shower
Material:Stainless Steel
Product Name:Air Shower
Type:Clean Room Air Shower
Function:Clean Work Room
Usage:Dust-Free Clean Room
Size:Customized Size
Power:AC,1 PH,220V,50/6OHz or AC,3 PH,380V,50/6OHz
Transport Package:Wooden Case
Specification:custom
DIMENSION AND PERFORMANCE DATA:
| MODEL | K-AR-1000 | K-AR-1500 | K-AR-2000 | K-AR-3000 | |||
| EXTERNALSIZE(WxDXH.MM) | 1200x1000x2050 | 1200 x 1500x 2050 | 1200 x 2000 x 2050 | 1200 x 300o x 2050 | |||
| INTERNAL SIZE(.WxDXH.MM) | 800 x900x 1900 | 800x 1400x 1900 | 800x1900×1900 | 80ox2900x1900 | |||
| JET SPEED | 20-25 m/s | ||||||
| No.OF JET NOZZLES | 12 | 16 | 24 | 36 | |||
| NO.OFBLOWER | 2 | 2 | 4 | 6 | |||
| POWER SUPPLY | AC,1 PH,220V,50/6OHz or AC,3 PH,380V,50/6OHz | ||||||
| POWER CONSUMPTION(APPROX) | 1100w | 1200W | 2200w | 3300w | |||
| HEPA FILTER | EFFICIENCY | 99.99% ormore at o.3 um particle | |||||
| SIZE | 760x 570x 70mm | 1170x570x70mm | 760x 570x70mm | 760x570x70mm | |||
| NO. | 2 | 2 | 4 | 6 | |||
| PRE-FLTER | NON-WOVEN | ||||||
| cONSTRUCTION | CASING | Powder baked epoxy finishing steelor Stainless steel | |||||
| FLOOR | sus | ||||||
| DOOR | sus | ||||||
| LGHT FITTING | 20Wx1 | 20Wx1 20Wx2 | 20Wx3 | ||||
| WEIGHT(APPROX) | 190 KGS | 260KGS | 360KGS | 55oKGs | |||
| RECOMMENDED NO.OF PERSON | 1 | 1—2 | 2—3 | 3—4 | |||
