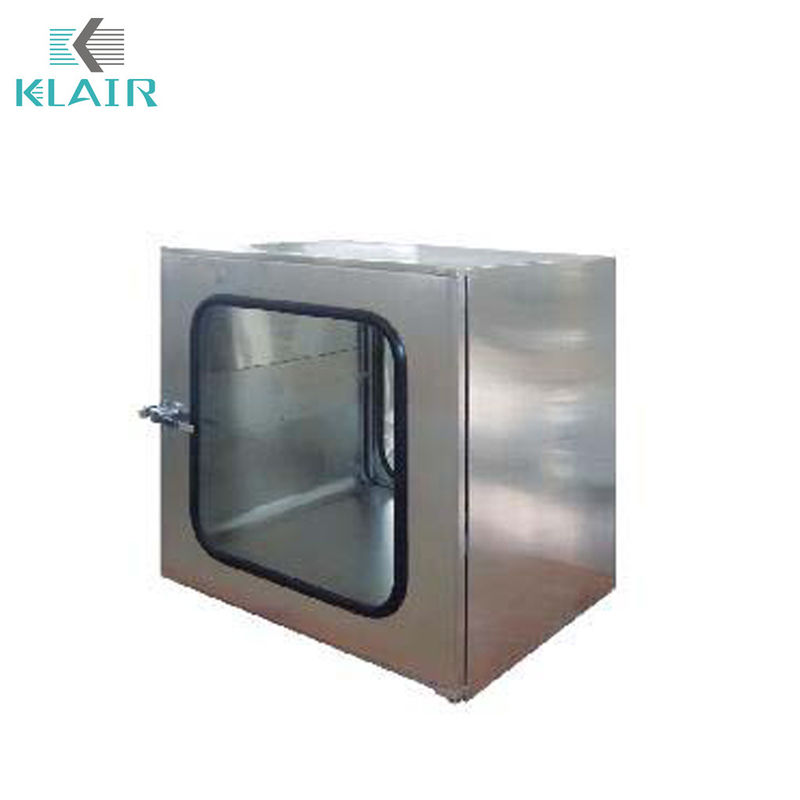

Transfer Window Stainless Steel Pass Thru Box Built In Boor Electromagnetic Interlock

Transfer Window Stainless Steel Pass Thru Box Built In Boor Electromagnetic Interlock

  • Transfer Window Stainless Steel Pass Thru Box Built In Boor Electromagnetic Interlock
  • Transfer Window Stainless Steel Pass Thru Box Built In Boor Electromagnetic Interlock
  • Transfer Window Stainless Steel Pass Thru Box Built In Boor Electromagnetic Interlock
  • Transfer Window Stainless Steel Pass Thru Box Built In Boor Electromagnetic Interlock
  • Transfer Window Stainless Steel Pass Thru Box Built In Boor Electromagnetic Interlock
  • Transfer Window Stainless Steel Pass Thru Box Built In Boor Electromagnetic Interlock
Transfer Window Stainless Steel Pass Thru Box Built In Boor Electromagnetic Interlock
Product Details:
Place of Origin: Guangdong, China
Brand Name: Klair Filter
Certification: ISO16890
Payment & Shipping Terms:
Minimum Order Quantity: 1per
Price: USD25-35
Delivery Time: 10-15days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 500pieces/everyday
Contact Now
Detailed Product Description
Product Name: Pass Thru Box Type: Electromagnetic Interlock
Interlock System: Electromagnetic Interlock System Typical Applications: Pharmaceutical / Microelectronics / Healthcare
Transport Package: Wooden Case Specification: 600*600*600mm
High Light:

50Hz Pass Thru Box

,

Microelectronics Pass Thru Box

,

Boor Electromagnetic Interlock Pass Box

Built-in Boor Electromagnetic Interlock Stainless Steel Pass Thru Box Transfer Window



Applications:



Static Pass Box For Clean Room (also pass through box) is an auxiliary device for clean room. It is mainly used for transferring of small items between clean areas of different classes of cleanliness, also between clean area and non-clean area, to reduce the number of times the clean room is opened, and to reduce the possibility of polluting the clean room to a minimum level.



The pass box is made of stainless steel and is plain and smooth. The double doors are interlocked to each other to effectively prevent air exchange and cross-contamination. They are equipped with electronic or mechanical interlocking devices and ultraviolet germicidal lamps.



Features:



1. stainless steel 304 material, the internal arc structure, easy to clean.
2. With PAO injection interface and test interface, using 304 stainless steel quick connector
3. Equipped with H14 liquid tank sealed high-efficiency filter with high-efficiency differential pressure gauge.
4. with ultraviolet germicidal lamp, sterilization time can be adjusted arbitrarily, and with sterilization timer and sterilization time accumulation function can be arbitrarily set whether the germicidal lamp and the fan start at the same time.
5. Self-developed LCD panel controller with two magnetic locks interlocking. There are two types of automatic and manual for users to set. In the automatic mode, users can set multiple functions by themselves, with time and function display, and call function.
6. It can be set to automatically start the fan supply mode at the same time after closing the door.



Advantages:



1. Built-in door, double black tempered glass with desiccant.
2. Fan, customized special fan, adjustable air supply time.
3. Design new air outlet (set in the high-clean area), increase internal positive pressure, adjustable air supply volume.
4. Accept special designs from users.



DIMENSION AND PERFORMANCE DATA
TYPE DYNAMICPASSBox STATICPASS Box
MODEL AS-PB-600 AS-PB-800 PB-600 PB-700
SIZE (WxDXH.MM) 940 x600 x 1450 1140x800x1550 760 x600 x690 860x 700x 790
HEPAFILTER SIZE(.WXDXH.MM) 600x 600 x600 80ox800x800 600 x600 x600 700x700x 700
CLEANLINESS OF LOCALIZED AIR Class 100 or equivalentas per Federal standard 209E'
HEPA FILTER EFFICIENCY 99.99%(Standard), 99.995%,99.99995% /
AIR VELOCTY(MS) 0.45Ms or 90 FPM / /
FAN RUN(R/MIN) 1690 1690 / /
AVERAGE AIR FLOW(M3/H) 1200 1200   /
POWER SUPPLY AC,1 PH,220V,50/60Hz   /
POWER CONSUMPTION (APPROX.) 285W 330w
PRE-FILTER Synthetic fber with an arrestance of 85%
CONSTRUCTION CASING Powder baked epoxy finishing steel or Stainless steel
NOISE <68dBA
