V Bank Activated Charcoal Filter , High Capacity Carbon Odor Filter Class 2

V Bank Activated Charcoal Filter , High Capacity Carbon Odor Filter Class 2

  • V Bank Activated Charcoal Filter , High Capacity Carbon Odor Filter Class 2
  • V Bank Activated Charcoal Filter , High Capacity Carbon Odor Filter Class 2
  • V Bank Activated Charcoal Filter , High Capacity Carbon Odor Filter Class 2
V Bank Activated Charcoal Filter , High Capacity Carbon Odor Filter Class 2
Product Details:
Place of Origin: China
Brand Name: KLAIR
Certification: EUROVENT
Model Number: BlackGuard HC
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Carton + Pallet Crate
Delivery Time: 5-8 Days
Payment Terms: T/T, LC, Western Union
Supply Ability: 500 PCS Per Week
Contact Now
Detailed Product Description
Product Name: Charcoal Filter Usage: Odor And Gas Filtration
Dimension: 24" X 24" X 12" Application: HVAC Application
Material: Carbon Granules Type: V-cells
High Light:

charcoal air filter

,

activated charcoal filter

V-cells High Capacity Charcoal Filter Activated Carbon Filter For Gaseous Adsorbed





Gaseous Adsorbed for molecular contaminant control.



The Charcoal activated carbon filter is use to remove airborne gaseous contaminant specific to medical, pharmaceutical molecular contaminant must be controlled to an acceptable thershold level.



The charcoal filter may be installed in any HVAC application where the use of outside air for contaminant dilution is prohibitive or for the removal or reduction of occupancy odors and volatile organic compounds.



The charcoal filter offers an excellent opportunity to minimize outdoor air and thereby reduce energy costs.



Description:

  • Media: Activated carbon granules imbedded between two perforated grids.
  • Construction: Galvanized steel or Plastic
  • Average arrestance: 90% on 5 microns
  • Recommended final pressure drop:400 Pa
  • Humidity resistance: 100%
  • Max Temperature: 100 ℃
  • DIN 53438 Flammability: F1
  • UL 900 Standard :  Class 2
  • Max.air flow rate:  125% of rated air flow
  • Media color available: black
  • Filter standard depth available 12 inch
  • Pull handle is availale upon request.



Performance:

  • Collection of solvent before recycling or evacuation to outside.
  • Purification of new air before introduction into the air circuit.
  • Economical, long-lasting, solution to many odor problems.
  • V-cells construction for high capacity filter of 292mm depth.
  • Easy to install.
  • Deodorization.
  • Panel filter contain a prefilter track.
  • Ideal solution for clean room recirculation and mini environment.
  •



Specifications:



Model Construction Dimensions (mm) Flow Rate (m3/h) Weight (kg)
CP-122403 Panel 295x595x70 400 6
CP-202403 Panel 495x595x70 700 10
CP-242403 Panel 595x595x70 800 12
CV-241212 V-cells 595x295x292 2000 15
CV-242012 V-cells 595x490x292 3200 20
CV-242412 V-cells 595x595x292 4000 25



Panel Construction​:



V Bank Activated Charcoal Filter , High Capacity Carbon Odor Filter Class 2 0

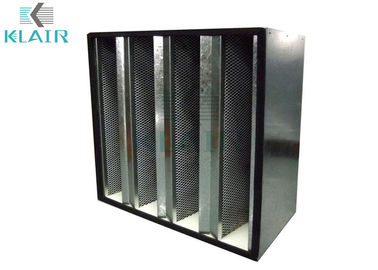

V-cells Construction​:

V Bank Activated Charcoal Filter , High Capacity Carbon Odor Filter Class 2 1
