KLAIR Gas Turbine Air Intake High Flow Filter With Rigid Galvanized Steel Construction 24x24x12
Description:
The FloMax High Flow Filter unique, stable filter design distributes air evenly across the filter. It allows for large variations in air flow and pressure drop without affecting filter performance and efficiency.
Specifications:
- Media: Polypropylene or glass fibre paper
- Separator: Hot-melt beads
- Frame: GI;Plastic
- Efficiency range from MERV 11-14
- Initial resistance: 110 Pa
- Recommended final pressure drop : 400Pa
- Humidity resistance: 100%
- Max Temperature: 80 ℃
- Sealant: Polyurethane rubber PU
- DIN 53438 Flammability: F1
- UL 900 Standard : Class 2
- Max.air flow rate: 125% of rated air flow
- Gasket: one piece half round continuous gasket
- Available in Box or Single flange type.
Parameters:
|
Nominal Size(WxHxD)Inch
|
Filter Efficiency
|
Media area m3
|
Airflow/pressure drop m3/h/Pa
|
|
12x24x12
|
MERV 11
|
14
|
2000/110
|
|
20x24x12
|
MERV 11
|
21
|
3000/110
|
|
24x24x12
|
MERV 11
|
35
|
3600/110
|
|
12x24x12
|
MERV 13
|
14
|
2000/130
|
|
20x24x12
|
MERV 13
|
21
|
3000/130
|
|
24x24x12
|
MERV 13
|
35
|
3600/130
|
|
12x24x12
|
MERV 14
|
14
|
2000/140
|
|
20x24x12
|
MERV 14
|
21
|
3000/140
|
|
24x24x12
|
MERV 134
|
35
|
3600/140
|
Other sizes is available!
Advantage:
- Eliminates downstream dust and fiber shedding.
- Reduced resistance to air flow promotes significant energy savings.
- Dual direction media for front or reverse mount installation.
- No aluminum spacers to damage the filter media.
- Longer filter life with lower replacement and maintenance costs.

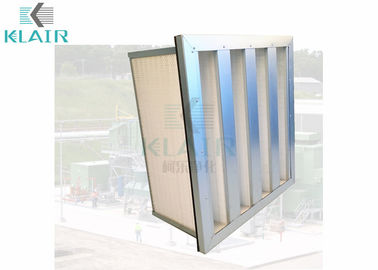

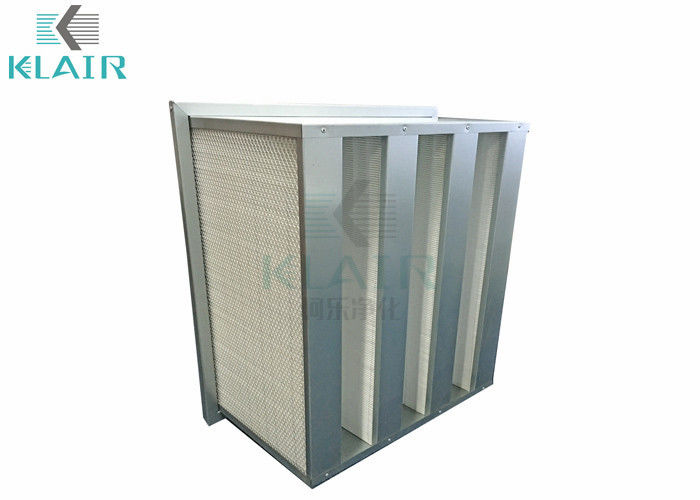

Product Picture
