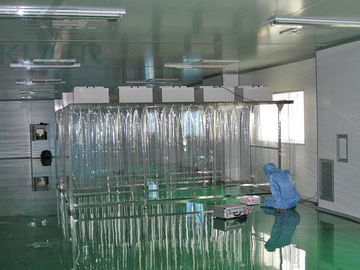

Class 100 Portable Cleanroom Air Shower / Laminar Flow Clean Room

Class 100 Portable Cleanroom Air Shower / Laminar Flow Clean Room

Class 100 Portable Cleanroom Air Shower / Laminar Flow Clean Room
video
Class 100 Portable Cleanroom Air Shower / Laminar Flow Clean Room
Product Details:
Place of Origin: China
Brand Name: KLAIR
Certification: ISO 16890
Model Number: Module Clean room
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Carton + Pallet Crate
Delivery Time: 5-8 Days
Payment Terms: T/T, LC, Western Union
Supply Ability: 10 PCS Per Week
Contact Now
Detailed Product Description
Product Name: Clean Booth Usage: Class 100 Clean Workspace
Body Material: Aluminum Or Stainless Steel HEPA Filter: H13
Voltage: 1P/220V/60Hz Dimension: OEM
High Light:

decontamination air shower

,

clean room equipment

,

Class 100 Cleanroom Air Shower

ISO 5 Dust Free Laminar Flow Clean Booth Creating Class 100 Portable Cleanroom





Specifications:

  • Cleanliness: From Class 100-10,000.
  • FFU Dimension: 1175x575x300mm
  • FFU Casing material: SUS
  • Power source: 110V/60Hz AC or 220V/60Hz AC
  • HEPA Filter: H13 or H14 or U15 ULPA Filter
  • Housing material: SUS or Aluminum
  • Wall material: Softwall ( Anti-static PVC curtain / PVC curtain)
  • Hardwall ( Anti-static acrylic / acrylic)
  • Lighting: Available in LED or T8
  • Accessories: Available in constant temperature and humidity



Applications:



Use FFU ( Fan Filter Unit) as the core, clean booth provides a high level of cleanliness. It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness.



Widely apply for LCM, CMOS Camera Module, Touch Play, Optical Module, Film, Bilogical Pharmacy, Packing and Food Processing.



Advantages:



  • Easy installation.
  • Low cost modularized design and easy upgrading
  • Assembly structure design, easily move.
  • Module design, clean booth can be as small as several square meters and can be as large as hundreds of square meters.
  • It has large useful and effective area; while compare with traditional clean room, it has such features like LOW investment, high return and stable.
  • Low noise level
  • High efficiency HEPA/ULPA filter



Dimensions:



Class Model Dimension (WxDxH)mm
*inner height
FFU Q'ty Airflow (m3/h)
Class 10-100 MCR4X4 1220X1220X2150 2 2300
Class 10-100 MCR4X8 1220X2440X2150 4 4600
Class 10-100 MCR8X8 2440X2440X2150 8 9200
Class 10-100 MCR8X12 2440X3660X2150 12 13800
Class 10-100 MCR8X16 2440X4880X2150 16 18400
Class 10-100 MCR8X20 2440X6100X2150 20 23000
Class 10-100 MCR12X12 3660X3660X2150 18 20700
Class 1000 MCR8X12 2440X3660X2150 9 10350
Class 1000 MCR8X16 2440X4880X2150 12 13800
Class 1000 MCR8X20 2440X6100X2150 15 17250
Class 1000 MCR10X12 3050X3660X2150 8 9200
Class 1000 MCR12X12 3660X3660X2150 10 11500
Class 1000 MCR12X16 3660X4880X2150 12 13800
Class 1000 MCR12X20 3660X6100X2150 16 18400
Class 10,000 MCR8X8 2440X2440X2150 2 2300
Class 10,000 MCR8X12 2440X3660X2150 2 2300
Class 10,000 MCR8X16 2440X4880X2150 4 4600
Class 10,000 MCR12X16 3660X4880X2150 5 5750

Other sizes as request.



FAQ.



Why will you choose us? What’s our prosity?



* 12-hours reply

We have warm sales teams,your questions or inquiry will be replied in 12 hours,send you the correct price and photos for confirm.



* Free sample

Free sample will be sent for you check the quality and workmanship within 2 days



* Factory price

Factory direct quality assurance competitive price



* Professional

Owing 8 years producing and designing experience in filtration industry



* Timely delivery

We have three production lines for filter media and one line for air filters production, one for cleanroom purify equipments, with the most advanced equipments and stable workers to control the quanlity and capacity.

Filter media delivery date: polyester media type: 2-3 days,spray booth filter type: 4-5 days,air filter media: 7-8 days,Air filter: 3-5 days,filter mesh: 4-5 days



* OEM made

OEM is warmly welcomed, we can arrange your own color or label,print your OEM package,and make your own shape according to your drawing.



* After-sale service



We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment.For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.



* Certificate



We are Alibaba Assessed Supplier,our company approved CE,SGS, ISO9001-2008,for other certificate,example: SASO,SONCAP,FDA,MSDS,UL etc.,we can help you apply it and the charge can return you when the order reached our appointed MOQ.



* Payment terms



T/T, D/P, L/C, Paypal, Western Union



Just send enquiry to us now ,you will get more than what you see.
