Room Side Replaceable HEPA Filter Module Unit Glass Fiber HEPA Air Filter for Cleanroom

Room Side Replaceable HEPA Filter Module Unit Glass Fiber HEPA Air Filter for Cleanroom

  • Room Side Replaceable HEPA Filter Module Unit Glass Fiber HEPA Air Filter for Cleanroom
  • Room Side Replaceable HEPA Filter Module Unit Glass Fiber HEPA Air Filter for Cleanroom
Room Side Replaceable HEPA Filter Module Unit Glass Fiber HEPA Air Filter for Cleanroom
Product Details:
Place of Origin: China
Brand Name: Klair
Certification: ISO16890
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$ 10-100
Packaging Details: Carton
Delivery Time: 10-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 pcs pre week
Contact Now
Detailed Product Description
Unit Material: Anodized Aluminum Media: Ultra Fine Glass Fiber
Separator: Hot Melt Adhesive Std.EN1822:2009: H14 / H13
Efficiency: 99.999% / 99.99% At 0.3μm (DOP/PSL/PAO Counting Method) Maximum Temperature: 70ºC
Maximum Relative Humidity: 100%

Room Side Replaceable HEPA Filter Module Unit Glass Fiber HEPA Air Filter for Cleanroom​



Product Description

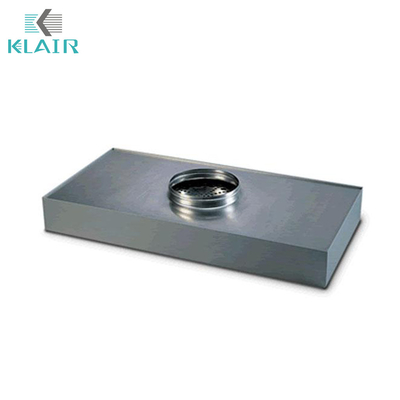

Room side replaceable HEPA filter module unit is mainly used in the terminal filtration equipment of class 1000 ~100000 clean room environment. It can not only replace the traditional air filter box, but also has the advantages of easy replacement and saving maintenance cost compared with the disposable filter box.It is the first choice for many engineering companies.



Features



1. Environmental protection and low cost: Equipped high quality ULPA/HEPA filter can be replaced,don't need to be replaced together with the box, reduce the cost,save resources.
2. Simple and convenient maintenance: With special tool free filter screen fixing flat, ULPA/HEPA filter replacement can be finished directly inside the room.Quick installation and easy replacement.
3. Beautiful and lightweight box: Anodized aluminum extrusion type box material, light weight, easy to handle and install.
4. Considerate and flexible selection:Several kinds of Inlet duct sizes and optional stainless steel Air outlet panels, to meet different customer needs.
5. Wide use and diversified design: Suitable for all kinds of ceilings.Heavy duty ceiling grid(T-Bar),Light duty ceiling grid(T-Bar), ceiling panel.



Technical Data Sheet



Unit material: Anodized aluminum
Media: Ultra fine glass fiber
Separator :Hot melt adhesive
Std.EN1822:2009 : H14 / H13
Efficiency: 99.999% / 99.99%  at 0.3μm (DOP/PSL/PAO Counting method)
Maximum temperature: 70ºC
Maximum relative humidity: 100%
Inlet duct standard diameter: 350mm/300mm/250mm



Parameters Table



Unit dimension
(Without inlet duct)
L×W×D(mm)
Filter dimension
(Without gasket)
L×W×D(mm)
Rated air flow (m3/h) Initial
pressure drop(Pa)
1210×600×180 1170×560×70 2050 249
1170×570×180 1130×530×70 1900
905×600×180 865×560×70 1500
870×570×180 830×530×70 1350
600×600×180 560×560×70 950
570×570×180 530×530×70 850
Match With High airflow HEPA Filter


Room Side Replaceable HEPA Filter Module Unit Glass Fiber HEPA Air Filter for Cleanroom 0Room Side Replaceable HEPA Filter Module Unit Glass Fiber HEPA Air Filter for Cleanroom 1Room Side Replaceable HEPA Filter Module Unit Glass Fiber HEPA Air Filter for Cleanroom 2
