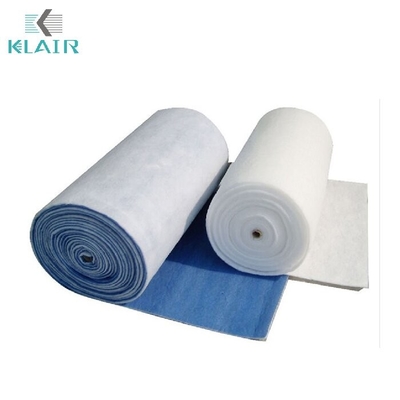

Air Ventilation Filter Media Rolls , Synthetic Fiber Air Filter G2 G3 G4 Material

Air Ventilation Filter Media Rolls , Synthetic Fiber Air Filter G2 G3 G4 Material

  • Air Ventilation Filter Media Rolls , Synthetic Fiber Air Filter G2 G3 G4 Material
  • Air Ventilation Filter Media Rolls , Synthetic Fiber Air Filter G2 G3 G4 Material
  • Air Ventilation Filter Media Rolls , Synthetic Fiber Air Filter G2 G3 G4 Material
Air Ventilation Filter Media Rolls , Synthetic Fiber Air Filter G2 G3 G4 Material
Product Details:
Place of Origin: China
Brand Name: Klair
Certification: ISO16890
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$ 10-100
Packaging Details: Carton
Delivery Time: 10-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 pcs pre week
Contact Now
Detailed Product Description
Media: Synthetic Fiber Medium Material: ACTIVE CARBON
Final Resistance (Pa): 150 Porosity: 5um
Efficiency: 90%
High Light:

G3 Filter Media Rolls

,

G4 Filter Media Rolls

,

Ventilation Synthetic Fiber Air Filter

Air ventilation filter media rolls Synthetic Fiber Air Filter G1 G2 G3 Material



Product Description



This broad spectrum of products is designed for use as preflight for more expensive final filters, often extending the life-cycle of these final filters by 50% ore more. Other popular applications includes gas turbine air intake systems, commercial/ industrial central air handlers, unit ventilators, fan coil units, or any system where fiberglass or other filtering materials are not preferred.



Features



1. Resistant to fracture, high elasticity;
2. On the general solvent, weak acid and weak base have certain corrosion resistance
3. Large dust holding capacity and stable performance;
4. Long service life;
5. Spray glue treatment can be cleaned and reused, or by beating, blowing back to remove the dust, continue to use.
6. Available to supply in cut pad or rolls;
7. Washable.



Technical Data Sheet



Media: synthetic fiber
Medium Material: ACTIVE CARBON
Porosity: 5um
Final Resistance (Pa): 150
Size: Customized
Efficiency: 90%



Parameters Table



Weight (g/m²) 250 300 400
Standard Roll 2m x 20m x 10mmm 2m x 20m x15mm 2m x 20m x 20mm
Class acc.to EN 779 G2 G3 G4
Dust holding capacity
(gsm)
246 269 325
Face velocity(m/s) 1.5 1.5 1.5
Initial Resistance (Pa) 18 25 45
Recommended final resistance
(Pa)
150 150 150
Average Arrestance (%) 75 80 92
Packing Polyethyiene bags Polyethylene bags Polyethylene bags
Color White or White/Blue White or White/Blue White or White/Blue
Flame retardancy according to
DIN53438
F1 F1 F1
Max.operating temperature
(ºC)
100 100 100
Washability Limited Limited Good


Air Ventilation Filter Media Rolls , Synthetic Fiber Air Filter G2 G3 G4 Material 0Air Ventilation Filter Media Rolls , Synthetic Fiber Air Filter G2 G3 G4 Material 1Air Ventilation Filter Media Rolls , Synthetic Fiber Air Filter G2 G3 G4 Material 2
