KLAIR FILTRATION TECHNOLOGY CO.,LTD
Place of Origin: | China |
Brand Name: | Klair |
Certification: | ISO16890 |
Minimum Order Quantity: | 1 |
---|---|
Price: | US$ 10-100 |
Packaging Details: | Carton |
Delivery Time: | 10-15days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 300 pcs pre week |
Media: | Ultra-fine Fiberglass Filter Paper | Frame: | Aluminum Alloy, Wood, Galvanized Or Stainless Steel |
---|---|---|---|
Structure: | Frame: : Box Type, Single Header Or Double Flanges Separator: Aluminum Or Paper Foil | Sealant: | Polyurethane Or Temperature Resistant Gel |
Filter Efficiency: | F8 | Separator: | Aluminum Or Paper Foil |
High Light: | Extruded Aluminum Separator Filter,F8 Extruded Aluminum Separator Filter,610X610X292 Ventilation System Filter |

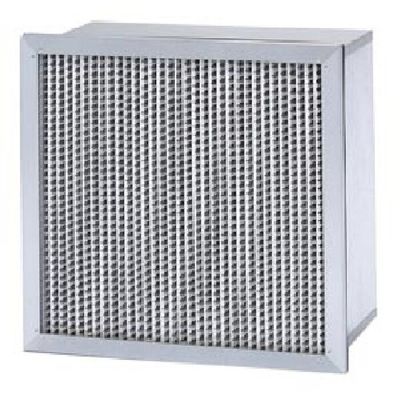

F8 Extruded Aluminum 610X610X292 Separator Filter for General Ventilation System
Product Description
Good quality and high performance super fine glass fiber, over-length glass fiber, pp fiber filter paper and so on are used as filter medium and aluminum foil or two-sided offset paper is used as spacer. Suitable for electronics, bio pharmaceutical industry, hospital and the occasions require high cleanliness terminal filtration.
Features
1. Filter efficiency is F8.
2. Medium eff. F8: traps 80% or higher of 1.0μm particles.
3. Adopt special folding machine for manufacturing.
4. Use special fiberglass filter paper as the filter media, good stability of filtration efficiency.
5. Use special aluminum foil or offset paper as separator.
6. Double side retainers, protect the filter material, with good strength.
Technical Data Sheet
Media: Ultra-fine fiberglass filter paper
Frame: Aluminum alloy, wood, galvanized or stainless steel
Structure: Box type, single header or double flanges
Separator: Aluminum or paper foil
Sealant: Polyurethane or temperature resistant gel
Temperature: 90°C-350°C in continuous service
Parameters Table
Model | Dimensions | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressur Drop (Pa) |
||
W×H×D (mm) | Standard | High Capacity | Standard | High Capacity | F8 | |
HTH230 | 230×230×110 | 0.8 | 1.4 | 110 | 180 | ≤85 |
HTH320 | 320×320×220 | 4.1 | 6.1 | 350 | 525 | |
HTH484/10 | 484×484×220 | 9.6 | 14.4 | 1000 | 1500 | |
HTH484/15 | 726×484×220 | 14.6 | 21.9 | 1500 | 2250 | |
HTH484/20 | 968×484×220 | 19.5 | 29.2 | 2000 | 3000 | |
HTH630/05 | 315×630×220 | 8.1 | 12.1 | 750 | 1200 | |
HTH630/10 | 630×630×220 | 16.5 | 24.7 | 1500 | 2250 | |
HTH630/15 | 945×630×220 | 24.9 | 37.3 | 2200 | 3300 | |
HTH630/20 | 1260×630×220 | 33.4 | 50.1 | 3000 | 4500 | |
HTH610/03 | 305×305×150 | 2.4 | 3.6 | 250 | 375 | |
HTH610/05 | 305×610×150 | 5 | 7.5 | 500 | 750 | |
HTH610/10 | 610×610×150 | 10.2 | 15.3 | 1000 | 1500 | |
HTH610/15 | 915×610×150 | 15.4 | 23.1 | 1500 | 2250 | |
HTH610/20 | 1220×610×150 | 20.6 | 30.9 | 2000 | 3000 | |
HTH610/05X | 305×610×292 | 10.1 | 15.1 | 1000 | 1500 | |
HTH610/10X | 610×610×292 | 20.9 | 31.3 | 2000 | 3000 |
