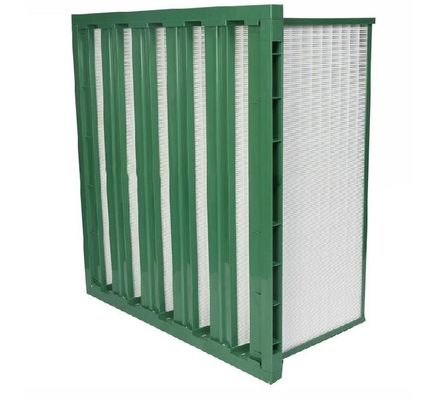

Plastic Frame / Metal Frame V Type Medium Compact Air Filter for Ventilation System

V Type Medium Compact Air Filter for Ventilation System Plastic Frame/ Metal Frame

Product Description

The filter adopts V-BANK filter of medium performance (filter provides efficiency of 60-65%, 80-85%, 90-95%, after forming, it has high efficiency, large dust holding capacity, large air filtration capacity and other features. Widely used in the end' s air purifying of general air-conditioning system, air purification system and spray fresh air supply system, it can also be used as a pre-filter of ultra efficiency filter to extend its service life. The general ambient temperature of use is less than 80 degrees.

Features

1. The unique V-bank design enables more area of mini-pleated filtration media being assembled
2. Lower pressure drop
3. Higher dust holding capacity
4. Longer service life

Technical Data Sheet

Frame: ABS plastic/ Galvanized Frame
Media: Glass fiber paper or synthetic fiber paper
Separator: Hot melt adhesive
Sealant: Polyurethane
Working condition: Continuous Operating Temperature: ≤ 70ºC , Humidity: ≤ 80% RH
                               Recommended Final resistance: F6 ~ F9 ≤ 350 Pa, H11 ~ H12 ≤ 600Pa
Efficiency: M6(EN 779): 60%- 80%@0.3μm, F7(EN 779):80%- 90%@0.3μm,
                  F8(EN 779):90%- 95%@0.3μm, F9(EN 779):≥ 95%@0.3μm

Parameters Table

​
