Super Thin HEPA Filter FFU , Fan Filter Unit With HEPA Filter

Super Thin HEPA Filter FFU , Fan Filter Unit With HEPA Filter

  • Super Thin HEPA Filter FFU , Fan Filter Unit With HEPA Filter
  • Super Thin HEPA Filter FFU , Fan Filter Unit With HEPA Filter
  • Super Thin HEPA Filter FFU , Fan Filter Unit With HEPA Filter
Super Thin HEPA Filter FFU , Fan Filter Unit With HEPA Filter
Product Details:
Place of Origin: China
Brand Name: Klair
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US$ 100-500
Packaging Details: Carton
Delivery Time: 10-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs pre week
Contact Now
Detailed Product Description
Voltage: 120/240V Material: Stainless Steel
Size: 2'x2', 2'x3', 2'x4' Specification: 575*1175*180 Mm
Filter: ULPA, HEPA Filter Replacement Access: Room-Side, Top Side
Housing Material: Galvanized / Stainless Steel Noise Level: <60 DB
Fan Type: Aluminum Turbofan
High Light:

Galvanized HEPA Filter FFU

,

Stainless Steel HEPA Filter FFU

,

Super Thin Fan Filter Unit

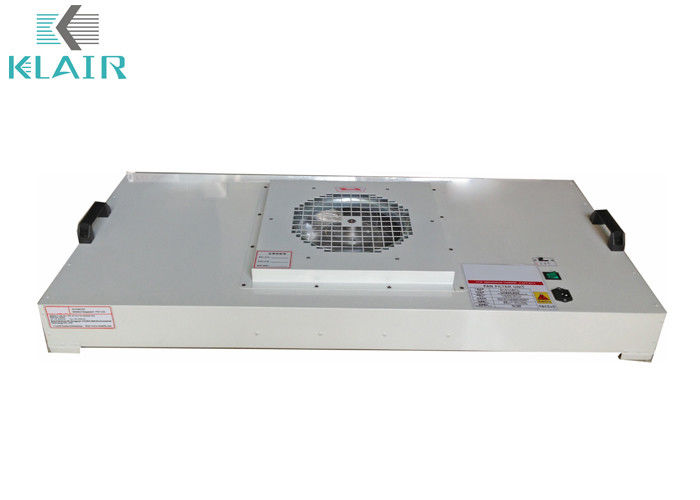

Super Thin HEPA Filter FFU (Fan Filter Unit) with HEPA Filter



Product Description



Ultra thin FFU is generator set with super thin motor inside which is used in the turbulent layer and laminar flow clean room, where have limited installation space. Its speed can also reach to 0.45m/s ±20% same as other FFU.
It is 100mm thinner than the ordinary FFU.The material of cabinet is stainless steel, Galvanized steel with aluminum painting, Cold rolled steel with epoxy powder and so on. It is lighter, corrosion-resistance, rust-resistance and beautiful.



Features



1. Overheating protection
Inside equipped with overheating protection, the surface is smooth and bright, lower air resistance and good sound insulation. Special air entrance design can low down the noise effectively .
2. The average air velocity increase to 25% Long-life span, energy-saving, low noise, less maintenance, small vibration and adjustable speed. The average air velocity increase to 25%.
3. Life-long span It works as an average air speed of 0.45m/s. The outlet speed is stable and can shorten the period the replace filters. In the meantime, it can extend the service life of fans.
4. Space-saving
Light and convenient, easy and beautiful design. Let the using space reduced largely and the efficiency is higher. Not only improve the scope and space, but also energy saving.



Technical Data Sheet



Voltage: 120/240 V
Material: Stainless Steel
Size: 2'x2', 2'x3', 2'x4'
Specification: 575*1175*180mm
Filter: ULPA, HEPA
Filter Replacement Access: Room-Side, Top Side
Housing Material : Galvanized / Stainless Steel
Noise Level: <60 dB
Fan Type: Aluminum Turbofan



Parameters Table



FFU measurement(mm ) 575*575*190 1175*575*190
Filter Measurement (mm) 570*570*69 1170*570*69
Rated Air Flow(m3/h) 500 1000
Power Consumption(W) 70-110 150-180
Noise Level (dB) 48-52 49-54
Resistance @0.45 (m/s) 230 290
Power consumption(A) 0.33-0.51 0.69-0.82
Air Velocity(m/s) 0.3-0.5
Filtration Rating H13 (optional from H13-U17)
Power Supply 220V/50HZ
Method of Control Shift adjustment /Infinite variable adjustment /Group control adjustment
Casing Material Aluminum Coated Zinc Plate/Stainless Steel/Pre-coated Aluminum Plate
