KLAIR FILTRATION TECHNOLOGY CO.,LTD

|
| Place of Origin: | China |
| Brand Name: | Klair |
| Certification: | ISO 16890 |
| Model Number: | UltraMICRO® GS |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$ 10-100 |
| Packaging Details: | Carton |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 pcs pre week |
| Media: | Ultra-fine Glass Fiber Filter Paper | Frame: | Galvanized Sheet/Stainless Steel/Aluminium Sheet/Anodized Aluminum Profile |
|---|---|---|---|
| Gel Sealing: | Hot Melt Adhesive | Media Guard: | Baking Finish Steel Screen,aluminum Screen |
| Efficiency: | 99.95% At 0.3μm(H13); 99.999% At 0.3μm(H14) |

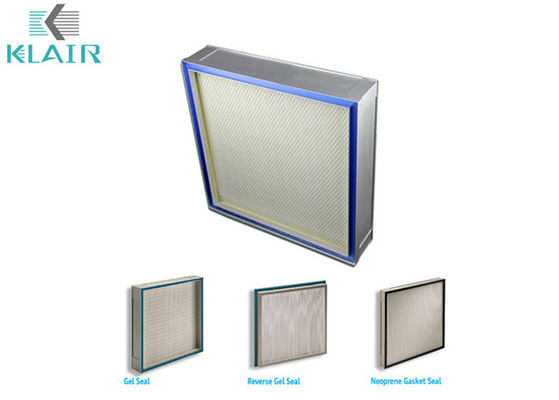

Mini Pleat HEPA Air Purifier Air Filter for Hospital Gel Seal Type HEPA Filter Selling
Product Description
Gel Seal HEPA Filter Filter adopt the liquid sealed technology and is a kind of method better than the commonly used seal mechanical pressing device. The Gel Seal is easily to be installed. The seal is very reliable, so its terminal filtration effect is better than ordinary products. It can be used in advanced filtation of air conditioning and ventilation system in the central air conditioning and ventilation system, such as microelectrnics, semiconductor, pharmaceutical, chemical, food and other clean areas of ventilation system end.
Features
1. No clapboard design,much lower running resistance
2. Wide application,compact structure,storage space saving
3. Ultra thin design, installation space saving
4. Liquid tank sealing,much better sealing performance
Technical Data Sheet
Frame material: Galvanized sheet/Stainless Steel/Aluminium sheet/Anodized aluminum profile
Gel sealing: Hot melt adhesive
Filter media: Ultra-fine glass fiber filter paper
Media guard: Baking finish steel screen,aluminum screen
Efficiency: 99.95% at 0.3μm(H13);
99.999% at 0.3μm(H14)
Parameters Table
| PART NUMBER | ACTUAL FILTER DIMENSIONS ( H X W X D ) |
RATED AIR FLOW | PRESSURE DROP ( Max.Initial ) |
WEIGHT EACH | ||||
| (inch) | (mm) | ( cfm ) | ( m3/h) | ( “w.g ) | ( pa ) | ( lbs) | ( kgs) | |
| Reverse Gel Seal # 99.99% Efficiency | ||||||||
| RGS-997121 | 23 3/8x23 3/8x3 | 594x594x75 | 588 | 1000 | 0.88 | 220 | 11 | 5 |
| RGS-997131 | 23 3/x23 3/8x3 7/8 | 594x1200x75 | 1176 | 2000 | 0.88 | 220 | 20 | 9 |
| RGS-997141 | 23 3/8x23 3/8x3 7/8 | 594x594x93 | 823 | 1400 | 0.88 | 220 | 14 | 6.5 |
| RGS-997151 | 23 3/8x47 3/8x3 7/8 | 594x1200x93 | 1646 | 2800 | 0.88 | 220 | 26 | 12 |
| Gel Seal # 99.99% Efficiency | ||||||||
| GS-998121 | 23 3/8x23 3/8x3 1/8 | 594x594x80 | 588 | 1000 | 0.8 | 200 | 12 | 5.5 |
| GS-998131 | 23 3/8x47 3/8x3 1/8 | 594x1200x80 | 1176 | 2000 | 0.8 | 200 | 22 | 10 |
