Surgical Room Hospital Hepa Filter H13 H14 Roomside Replaceable Terminal Modules

Surgical Room Hospital Hepa Filter H13 H14 Roomside Replaceable Terminal Modules

Surgical Room Hospital Hepa Filter H13 H14 Roomside Replaceable Terminal Modules
video
Surgical Room Hospital Hepa Filter H13 H14 Roomside Replaceable Terminal Modules
Product Details:
Place of Origin: China
Brand Name: KLAIR
Certification: ISO 16890
Model Number: ULTRAPURE
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: Negotiable
Packaging Details: Carton + Pallet Crate
Delivery Time: 15-18 Days
Payment Terms: T/T, LC, Western Union
Supply Ability: 100 PCS Per Week
Contact Now
Detailed Product Description
Name: HEPA FILTER H13 Efficiency: H13 H14 U15
Material: Micro Fiberglass Frame: Extruded Anodized Aluminum
Type: Terminnal Module/Diffuser Application: Pharmaceutical, Medical, Semiconductor
High Light:

Surgical Room Hospital Hepa Filter

,

Micro Fiberglass Hospital Hepa Filter

,

Roomside Replaceable HEPA Air Filter

HOSPITAL SURGICAL ROOM HEPA FILTER H13 H14 ROOMSIDE REPLACEABLE TERMINAL MODULES


Applications:
 These HEPA FILTER H13 terminal modules are specially designed for the pharmaceutical, medical, semiconductor, microelectronics, biotechnology and the surgical rooms of hospitals.

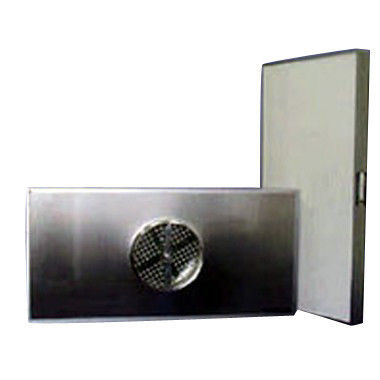

The HEPA / ULPA module consists of metal frame and media pack. The pack uses micro glass fiber media with efficiency 99.99%, 99.995% at 0.3 microns and 99.9995% at 0.12 microns.

The inlet diameter can be 10" (250mm), 12"=300mm

These modules are built in an ISO9001 registered facility.


Specifications:

Housing Size(mm) Filter Size(mm) Airflow (m3/h) Ini.P.D(Pa) Filter Area (m3)
360x360x180 320x320x69 264 220 2.93
524x524x180 484x484x69 595 220 6.61
650x650x180 610x610x69 940 220 10.4
670x670x180 630x630x69 1000 220 11.13
955x650x180 915x610x69 1388 220 15.42
1260x650x180 1220x610x69 1836 220 20
1300x670x180 1260x630x69 1958 220 21.76
345x345x180 305x305x69 240 220 2.66
650x345x180 610x305x69 458 220 5.09

Other sizes is available!

Advantages:


  • Easy installation
  • Easy change-out without tools
  • Roomside filter changeable
  • Low energy consumption reduces operating costs.
  • High static pressure at full air flow.
  • High efficiency HEPA/ULPA filter
  • Easy installation in cleanroom grids.
