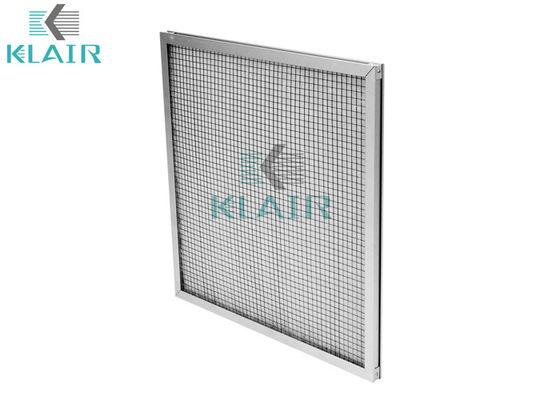

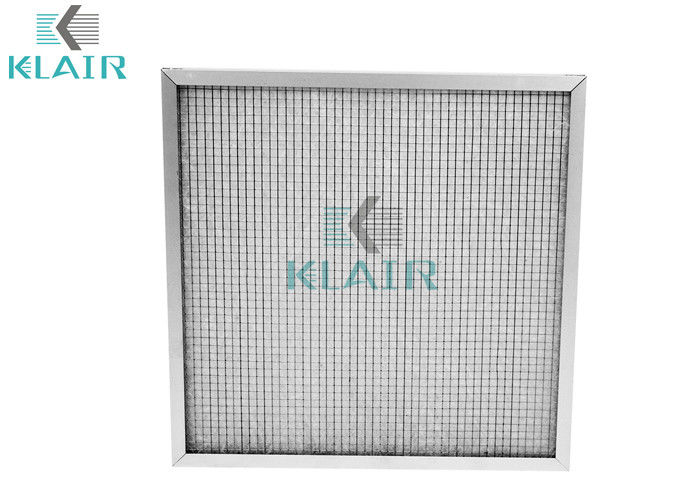

Heat Resistant Air Pre Filter , G1 Coarse Efficiency Glass Fiber Filter

Glassfibre Coarse Efficiency Heat Resistant Prefilter Use In Heat Oven

Applications:

Heat Resistant Prefilter is designed for use in Heat Oven, baked oven in the industry of Pharmaceutical and Automobile.

SPECIAL SIZES-We can custom make all sizes. It is important to specify exact dimensions on special sizes. These filters are made exactly as ordered. Thickness also available in 1" 2" and 4".

HANDLES-Handles are available upon request at an additional cost. Please specify exact location required.

Parameters:

• Media: Glass fibre
• Frame: Aluminum or Stainless Steel
• Efficiency range from G1
• Average Arrestance:  20% @10μm
• Initial resistance: 15 Pa
• Recommended final pressure drop : 100Pa
• Humidity resistance: 100%RH
• Max Temperature: 270 ℃
• DIN 53438 Flammability: F1
• UL 900 Standard :  Class 2
• Max.air flow rate:  125% of rated air flow
• Media color available: White
• Filter standard depth available 1/2 inch(10mm) and 1 inch(21mm)
• Galvanized supporting grid to ensure strength construction in diamond or square shape.

Specifications:

Competitive Advantage:

• Custom make all sizes.
• Low initial resistance.
• Frame re-usble.
