24 X 24 X 2 Merv 8 Pleated Air Filters Hvac Protection G4 Eu4 Efficiency

24 x 24 x 2 MERV 8 G4 EU4 Efficiency Pleated Panel Filter For Protection Of HVAC

Applications:

With a concertinaed synthetic media, the Pleated Panel Filter packs more into less. Offering superior performance over standard panel filter, our Pleated Panels enclose a far greater volume of filtering material into their Aluminum cases.

Not only does this afford a larger media surface area, providing longer life and higher dust holding capacity, but it also strengthens the entire filter, improving stability and assuring performane in operation.

Parameters:

• Media: Progressive density Synthetic fibre
• Frame: Water-resistance cardboard; GI; AI
• Efficiency: MERV 8 ASHRAE 52.2
• Average Arrestance:  80% @0.5μm;95%@0.5μm;
• Initial resistance: 45 Pa
• Recommended final pressure drop : 250Pa
• Humidity resistance: 90%RH
• Max Temperature: 80 ℃
• DIN 53438 Flammability: F1
• UL 900 Standard :  Class 2
• Max.air flow rate:  125% of rated air flow
• Media color available: Blue; White; Green
• Filter standard depth available 1 inch (21mm); 2 inch(46mm) and 4 inch(96mm)
• Galvanized supporting grid to ensure strength construction in diamond or square shape.

Specifications:

Competitive Advantage:

• High arrestance coupled with small particle control
• Compact design, for simple
• Welded wire media backing to maintain radial pleat configuration
• Available in 1", 2" and 4" depths
• Specially-finished spport grid.
• Synthetic media-No fibre loss or shedding.

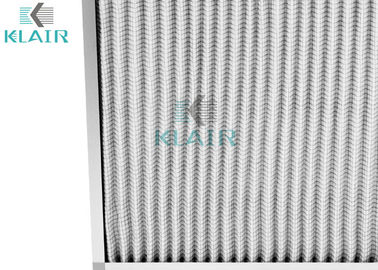

Product Picture:
