KLAIR FILTRATION TECHNOLOGY CO.,LTD

|
| Place of Origin: | China |
| Brand Name: | KLAIR |
| Certification: | ISO 16890 |
| Model Number: | PharmaGel |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton + Pallet Crate |
| Delivery Time: | 5-8 Days |
| Payment Terms: | T/T, LC, Western Union |
| Supply Ability: | 500 PCS Per Week |
| Product Name: | Gel Seal Air Filter | Application: | Clean Rooms |
|---|---|---|---|
| Filtration Grade: | HEPA Filter | Medium Material: | Fiberglass |
| Construction: | Gel Seal Filter | Dimension: | 24" X 24" X 3" |
| Efficiency: | 99.99% | ||
| Highlight: | pleated panel filter,pleated panel air filters,0.1 Micron Gel Seal Air Filter |
||
High Purify Reverse Gel Seal Air Filter 0.1 Micron For Pharmaceutical Cleanroom
Description:
The Gel Seal Air Filter are engineered to provide the optimum combination of efficiency and airflow. They are used in a wide range of applications, including pharmaceutical facilities, hospitals, biotech laboratories and other environments where control and removal of airborne contaminants is of paramount importance in the protection of people, processes, and equipment.
Compact minipleat design save energy
Gel Seal Air Filters are manufactured with a specialized thermoplastic adhesive bead (no aluminum separators) to maintain proper pleat separation and full utilization of the filter media. Precise spacing of the glue-bead separators ensure low resistance to airflow and reduced energy costs to the user.
Each minipleat pack is sealed into the filter frame with a white urethane adhesive designed specifically for high efficiency air filtration.
HEPA Filter high efficiency particulate arresting filters capture 99.97% of airborne contaminants as small as 0.3 microns in size. The KLAIR HEPA filter removes bacteria,mold spores,soot, pollens, animal hair, animal dander, dust mites, smoke particles and other allergens and lung damaging particles.
Advantages:
• Mini-pleat design features maximum media cleaning potential
• Tested for leak proof
• Lightweight and compact
• Easy installation
• Lowest possible pressure drop reduces operating costs.
• Each flter includes a label noting tested efciency,pressure drop,rated airfow;
• A one-piece endless gasket to ensure a leak-free flter-to-holding mechanism seal (optional)
• Available in a range of cleaning efciencies 95%@DOP,99.97%@DOP, 99.995%@DOP and 99.9995% on 0.12 microns.
| Frame: | Extruded Aluminum / Galvanized Steel / MDF |
| Media: | Wet laid microfine glass paper |
| Separator: | Hot-melt beads |
| Sealant: | Polyurethane |
| Gasket: | Continuous foamed seal or Neoprene |
| Frame Type: | Box, Gel Seal, Reverse Gel Sea, Knife edge |
| Max.Constant Temperature: | 80℃ (170℉) |
| Recommended Final Resistance: | 600Pa ( 2.4” W.G) |
| Flammability: | UL classified |
| Relative Humidity: | 100% |
Specifications:

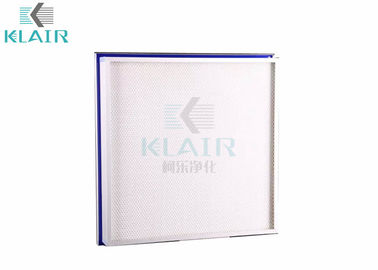

Product Picture:
Package and Shipping:
LCL shipping use pallet crate to protect your goods, FCL shipping use carton box.
