Fiberglass Pleated Air Filters With Extended Surface Mini Pleat Media

Fiberglass Pleated Air Filters With Extended Surface Mini Pleat Media

  • Fiberglass Pleated Air Filters With Extended Surface Mini Pleat Media
  • Fiberglass Pleated Air Filters With Extended Surface Mini Pleat Media
  • Fiberglass Pleated Air Filters With Extended Surface Mini Pleat Media
  • Fiberglass Pleated Air Filters With Extended Surface Mini Pleat Media
Fiberglass Pleated Air Filters With Extended Surface Mini Pleat Media
Product Details:
Place of Origin: China
Brand Name: KLAIR
Certification: EUROVENT
Model Number: FLOMAX
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Carton + Pallet Crate
Delivery Time: 5-8 Days
Payment Terms: T/T, LC, Western Union
Supply Ability: 500 PCS Per Week
Contact Now
All Products
Bag Air Filters (33)
HVAC Air Filters (28)
HEPA Air Filter (44)
Fan Filter Unit FFU (29)
Cleanroom Air Shower (26)
Spray Booth Air Filters (23)
Activated Carbon Air Filter (25)
High Temperature Air Filter (14)
Pleated Air Filters (28)
Air Purifier Filters (13)
Laminar Flow Cabinet (12)
Pass Box (12)
Detailed Product Description
Product Name: Fiber Glass Filter Material: Wet-laid Fine Fiber
Filter Frame: ABS Frame Type: Single Header
Efficiency: MERV 13 / 14, E10-H13 Application: Gas Turbine Air Compressor
High Light:

pleated furnace filters

,

pleated panel air filters

,

Extended Surface Pleated Air Filters

Klair High Efficiency Fiber Glass Filter With Extended Surface Mini Pleat Media





Applications:



The FloMax Fiber Glass Filter are used in high efficiency final filtration in air conditioning systems, where very high airflow required.



Specifications:



Size(WxHxD)mm

Filter Efficiency

Media area m3

Airflow/pressure drop m3/h/Pa

305x610x292

E10

14

2000/160

595x595x292

E10

21

4000/160

610x610x292

E10

35

5000/160

305x610x292

E12

16

1500/110

595x595x292

E12

33

3400/110

610x610x292

E12

40

4000/110

289x595x292

H13

16

1300/110

595x595x292

H13

38

3200/110

610x610x292

H13

40

4000/110

Other sizes is available!



Description:



  • Media: Polypropylene  or glass fibre paper
  • Separator:Hot-melt beads
  • Frame: GI;Plastic
  • Efficiency range from F9 ,H10,H11,H13(EN 1822)
  • Initial resistance: 110 Pa
  • Recommended final pressure drop : 600Pa
  • Humidity resistance: 100%
  • Max Temperature: 80 ℃
  • Sealant: Polyurethane rubber PU
  • DIN 53438 Flammability: F1
  • UL 900 Standard :  Class 2
  • Max.air flow rate:  125% of rated air flow
  • Gasket: one piece half round continuous gasket
  • Available in Box or Single flange type.



Competitive Advantage:



  • Ensure a long operation reliability and high dust holding capacity
  • High air flow rates, up to 5000 m3/hr
  • Low initial resistance.
  • Tested in accordance with EN 1822
  • Low energy consumpation.



Product Picture

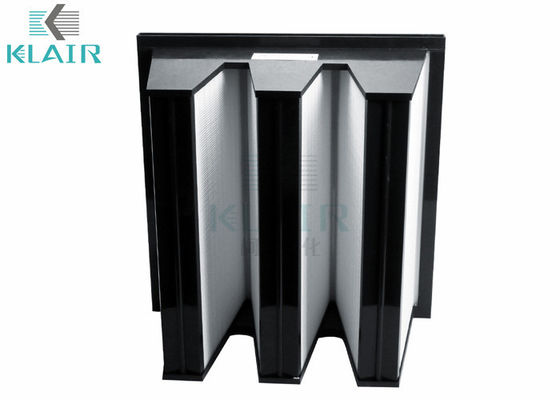

Fiberglass Pleated Air Filters With Extended Surface Mini Pleat Media 0
