Ashrae Merv 8 Pleated Air Filters Intake Pre Filter For Air Conditioning Unit

Ashrae Merv 8 Pleated Air Filters Intake Pre Filter For Air Conditioning Unit

  • Ashrae Merv 8 Pleated Air Filters Intake Pre Filter For Air Conditioning Unit
  • Ashrae Merv 8 Pleated Air Filters Intake Pre Filter For Air Conditioning Unit
  • Ashrae Merv 8 Pleated Air Filters Intake Pre Filter For Air Conditioning Unit
  • Ashrae Merv 8 Pleated Air Filters Intake Pre Filter For Air Conditioning Unit
Ashrae Merv 8 Pleated Air Filters Intake Pre Filter For Air Conditioning Unit
Product Details:
Place of Origin: China
Brand Name: KLAIR
Certification: EUROVENT
Model Number: GGuard HD
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Carton + Pallet Crate
Delivery Time: 5-8 Days
Payment Terms: T/T, LC, Western Union
Supply Ability: 500 PCS Per Week
Contact Now
Detailed Product Description
Product Name: Air Intake Filter Dimension: 24" X 24" X 2"
Efficiency: MERV 8 ISO 16890: EPM10 50%
Material: Synthetic Appliacation: Prefilter In Air Conditioning System
High Light:

pleated panel filter

,

pleated panel air filters

ASHRAE MERV 8 Rating Air Intake Filter Furnace Filter For Air Conditioning Unit





Applications:



Tha Klair Air Intake Filter is a medium efficiency extended surface pleated panel filter, engineered to provide higher initial efficiencies and overall superior performance than standard pleated filters.



The Filter carries a MERV 8 peformance rating in accordance with ASHRAE Test Stanard 52.2-2007.



The MERV 8 make the filter an excellent upgrade from disposable filters and standard MERV 6 or 7 rated pleated filters. It is the best selection in applications such as hospitals, laboratories, pharmaceutical plants, commercial office buildings, and in any system in which a higher degree of indoor air quality is required.



Parameters:



  • Media: Progressive density Synthetic fibre
  • Frame: Water-resistance cardboard; GI; AI
  • Efficiency range from MERV 8 ASHRAE 52.2 1999
  • Average Arrestance:  90%@5μm;
  • Initial resistance: 45 Pa
  • Recommended final pressure drop : 250Pa
  • Humidity resistance: 90%RH
  • Max Temperature: 80 ℃
  • DIN 53438 Flammability: F1
  • UL 900 Standard :  Class 2
  • Max.air flow rate:  125% of rated air flow
  • Media color available: Blue; White; Green
  • Filter standard depth available 1 inch (21mm); 2 inch(46mm) and 4 inch(96mm)
  • Galvanized supporting grid to ensure strength construction in diamond or square shape.



Specifications:



Nominal Size

WxHxD.inch

Actual Size

WxHxD.mm

Rated Airflow(CFM)

Nominal Size

WxHxD.inch

Actual Size

WxHxD.mm

Rated Airflow(CFM)

20x18x1

495x445x21

1500

20x20x2

495x495x46

2363

20x20x1

495x495x21

1650

24x12x2

595x295x46

1700

22x22x1

546x546x21

2000

24x18x2

595x445x46

2550

24x10x1

595x241x21

1000

24x20x2

595x495x46

2839

24x12x1

595x295x21

1190

24x24x2

595x595x46

3400

24x14x1

595x343x21

1394

25x14x2

619x343x46

2000

24x16x1

595x394x21

1650

25x15x2

619x368x46

2210

24x18x1

595x445x21

1785

25x18x2

619x445x46

2660

24x20x1

595x495x21

1980

20x16x4

495x394x96

1870

24x24x1

595x595x21

2380

20x20x4

495x495x96

2363

16x16x2

394x394x46

1513

24x12x4

595x295x96

1700

20x10x2

495x241x46

1200

24x16x4

595x394x96

2261

20x14x2

495x343x46

1658

24x18x4

595x445x96

2550

20x15x2

495x368x46

1777

24x20x4

595x495x96

2839

20x16x2

495x394x46

1870

24x24x4

595x595x96

3400

20x18x2

495x445x46

2125

25x25x4

619x619x96

3690



Competitive Advantage:



  • Extended surface filtration area.
  • Low initial resistance to airflow.
  • High dust holding capacity.
  • Standard and High Capacity models



Product Picture:

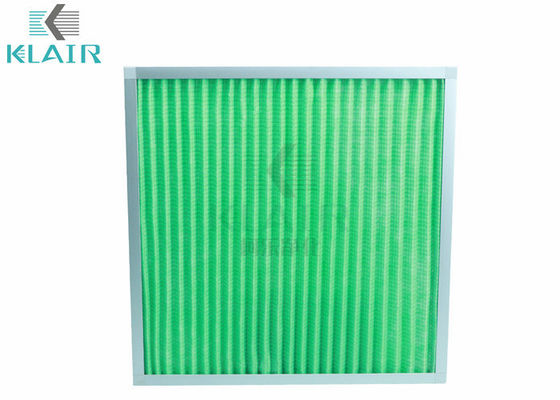

Ashrae Merv 8 Pleated Air Filters Intake Pre Filter For Air Conditioning Unit 0
