KLAIR FILTRATION TECHNOLOGY CO.,LTD
 |
| Place of Origin: | China |
| Brand Name: | KLAIR |
| Certification: | ISO 16890 |
| Model Number: | Mini Pleat Filter |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD 20-40 PER UNIT |
| Packaging Details: | CARton + Pallet Crate |
| Supply Ability: | 500 PCS PER WEEK |
| Name: | Air Purifier HEPA Filter | Media: | Micro Glass Fibers |
|---|---|---|---|
| Frame Material: | Lightweight Aluminum | Gasket: | Neoprene, EPDM |
| EN1822: | Medium, HEPA | Protection Grille: | Both Side |
| High Light: | particulate air filter,air filtration system,Oem Mini Pleat Filter |
||

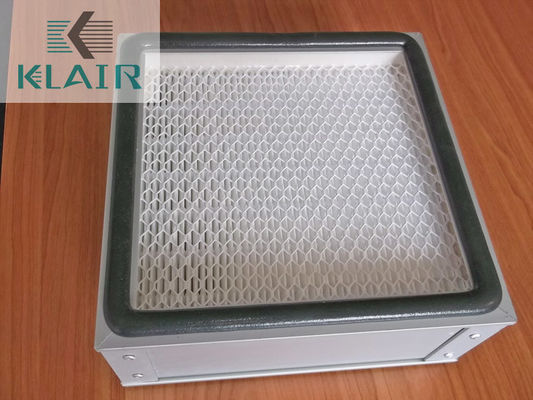

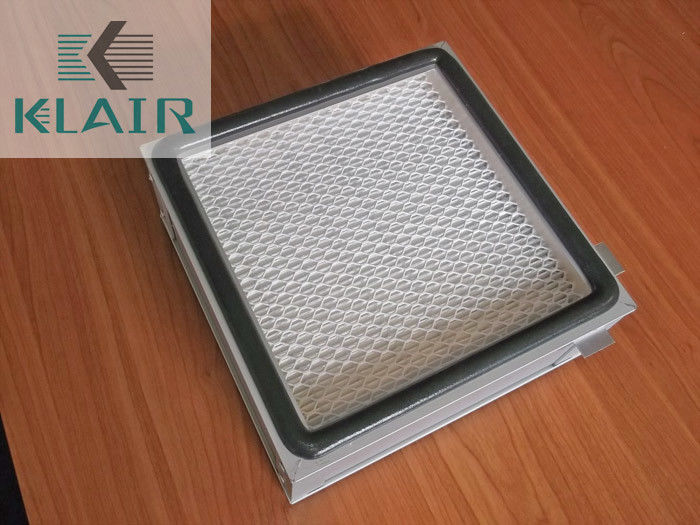

OEM Air Purifier HEPA Filter , Mini Pleat Filter With Micro Glassfibre Media
Applications:
The air purifier HEPA filters are used as high efficiency filters in all kind of air purifier or air cleaner equipments.
Specifications:
|
Nominal Size WxHxD.inch |
Actual Size (HxWxD)mm |
Rated Airflow(CMH) |
Initial Pressure Drop( Pa) |
|
12x12x2 |
305x305x50 |
180 |
160 |
|
24x24x2 |
610x610x50 |
700 |
160 |
|
36x24x2 |
915x610x50 |
1100 |
160 |
|
48x24x2 |
1220x610x50 |
1500 |
160 |
|
12x12x3 |
305x305x69 |
250 |
160 |
|
24x24x3 |
610x610x69 |
1000 |
160 |
|
36x24x3 |
915x610x69 |
1500 |
160 |
|
48x24x3 |
1220x610x69 |
2000 |
160 |
|
12x12x3 1/4 |
305x305x80 |
300 |
160 |
|
24x24x3 1/4 |
610x610x80 |
1300 |
160 |
|
36x24x3 1/4 |
915x610x80 |
1800 |
160 |
|
48x24x3 1/4 |
1220x610x80 |
2300 |
160 |
|
12x12x4 |
305x305x96 |
400 |
160 |
|
24x24x4 |
610x610x96 |
1400 |
160 |
|
36x24x4 |
915x610x96 |
1900 |
160 |
|
48x24x4 |
1220x610x96 |
2500 |
160 |
Other sizes is available!
