KLAIR Deep Pleated Hepa Air Filter Glass Fiber With 600 Pa Final Resistance

KLAIR Deep Pleated Hepa Air Filter Glass Fiber With 600 Pa Final Resistance

KLAIR Deep Pleated Hepa Air Filter Glass Fiber With 600 Pa Final Resistance
video
KLAIR Deep Pleated Hepa Air Filter Glass Fiber With 600 Pa Final Resistance
Product Details:
Place of Origin: China
Brand Name: KLAIR
Certification: EUROVENT
Model Number: ULTRAWAL
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Carton + Pallet Crate
Delivery Time: 5-8 Days
Payment Terms: T/T, LC, Western Union
Supply Ability: 500 PCS Per Week
Contact Now
Detailed Product Description
Product Name: Filter HEPA Cell Sides: Particle Board Or Metal
Media: Wet Laid Glass Microfibers Pleat Design: Unique Score Fold Design
Faceguards: Expanded Metal Faceguards Separators: Corrugated Aluminum Or Kraft Paper
Sealant: Urethane Sealant Gasket: Neoprene Or Endless Foamed Gasket
High Light:

hepa furnace filter

,

commercial hepa filters

KLAIR High Dust Holding, Glass Fiber Deep Pleated Filter HEPA with 600Pa Final Resistance


Product Description:


  • Media: Glass fiber
  • Frame: GI; AI; Stainless steel
  • Efficiency range from H13,H14 (EN 1822)
  • Separator: Aluminium foil or Sized paper
  • Efficiency: 99.99@0.3μm
  • Initial resistance: 160 Pa
  • Sealant: Polyurethane
  • Recommended final pressure drop : 600Pa
  • Humidity resistance: 100%
  • Max Temperature: 80 ℃
  • DIN 53438 Flammability: F1
  • UL 900 Standard :  Class 2
  • Max.air flow rate:  125% of rated air flow
  • Media color available: White
  • Gasket: one piece half round continuous gasket.
  • Each unit has a label noting tested efficiency,pressure drop,rated airflow.


Applications:

The filter HEPA are used as the final stage high efficiency filters in general HVAC system in all industries and clean room.

Specifications:


Size(HxWxD)mm

Rated Airflow(CMH)

Initial Resistance(Pa)

Final Resistance(Pa)

320x320x220

400




         120




     500

484x484x220

1000

610x610x150

1000

820x600x150

1200

630x630x220

1500

968x484x220

2000

945x630x220

2200

1260x630x220

3000

Other sizes is available!

Competitive Advantage:


  • Deep pleated separator HEPA filter-Absolute filter
  • Low initial resistance.
  • High dust holding capacity.
  • Leak Test one by one before delivery.

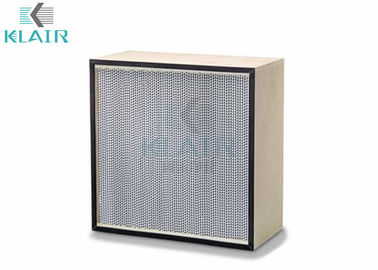

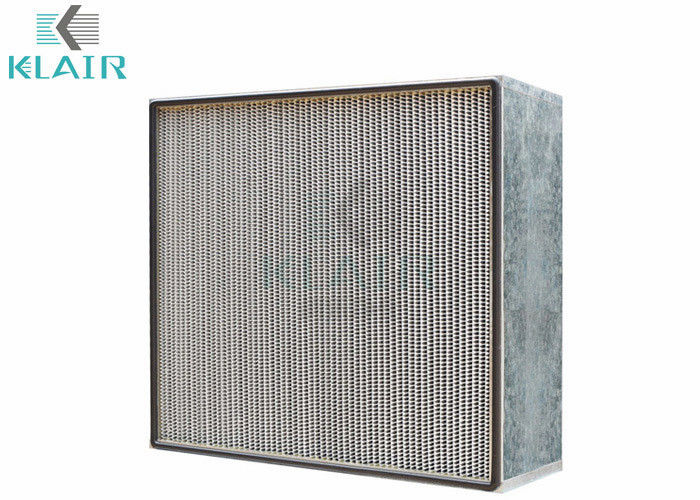

Product Pictures:

KLAIR Deep Pleated Hepa Air Filter Glass Fiber With 600 Pa Final Resistance 0KLAIR Deep Pleated Hepa Air Filter Glass Fiber With 600 Pa Final Resistance 1
FAQ.

Why will you choose us? What’s our prosity?

* 12-hours reply
We have warm sales teams,your questions or inquiry will be replied in 12 hours,send you the correct price and photos for confirm.

* Free sample
Free sample will be sent for you check the quality and workmanship within 2 days

* Factory price
Factory direct quality assurance competitive price

* Professional
Owing 8 years producing and designing experience in filtration industry

* Timely delivery
We have three production lines for filter media and one line for air filters production, one for cleanroom purify equipments, with the most advanced equipments and stable workers to control the quanlity and capacity.
Filter media delivery date: polyester media type: 2-3 days,spray booth filter type: 4-5 days,air filter media: 7-8 days,Air filter: 3-5 days,filter mesh: 4-5 days

* OEM made
OEM is warmly welcomed, we can arrange your own color or label,print your OEM package,and make your own shape according to your drawing.

* After-sale service

We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment.For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.

* Certificate

We are Alibaba Assessed Supplier,our company approved CE,SGS, ISO9001-2008,for other certificate,example: SASO,SONCAP,FDA,MSDS,UL etc.,we can help you apply it and the charge can return you when the order reached our appointed MOQ.

* Payment terms

T/T, D/P, L/C, Paypal, Western Union

Just send enquiry to us now ,you will get more than what you see.
