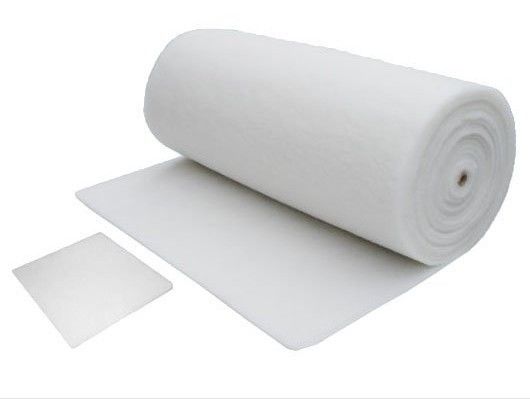

Inlet Cotton Polyester Air Filter Media Roll G2 G3 G4 For Air Conditioning

G2 G3 G4 Air Filter Media Roll , Polyester Fiber Air Inlet Cotton Media For Air Conditioning

Parameters:

• General Description: Primary filter media,air filter material
• Weight:250g/m2; 300g/m2; 400g/m2
• Thickness: 10/15/20mm
• Air Flow Rate: 1980m3/hr
• Initial resistance:15Pa
• Final resistance: 200Pa
• Media Arrestance:77.4%
• Air velocity: 0.55m/s
• Dust Holding: 285g/sqm
• Max Temperature: 110 C
• Filtration Class:G2/G3/G4(DIN 24185)
• Flame Resistance: F1(DIN 53438)
• Specification: 2mx20m

Applications:

Pre filter cotton, a filter cotton is mainly applicable to collect the larger dust molecules in the air to prevent the medium filter from being filled and blocked with larger dusts so early and keep longer service life and better filtration effect.It is made of super hard fiber and is sprayed with a kind of adhensive evenly for strengthening, and so it has a better primary filtration.

Competitive Advantage:

• Low initial resistance
• For general air conditioning system
• Progressively fiber density structure
• Supply rolls or cut to pads
