High Load Synthetic Pleated Filter Media G4 Grade

High Load Synthetic Pleated Filter Media G4 Grade

High Load Synthetic Pleated Filter Media G4 Grade
video
High Load Synthetic Pleated Filter Media G4 Grade
Product Details:
Place of Origin: China
Brand Name: KLAIR
Certification: ISO 16890
Model Number: PPM-4
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: PP Bag
Delivery Time: 10-15 Days
Payment Terms: T/T, LC, Western Union
Supply Ability: 500 PCS Per Day
Contact Now
All Products
Bag Air Filters (33)
HVAC Air Filters (28)
HEPA Air Filter (44)
Fan Filter Unit FFU (29)
Cleanroom Air Shower (26)
Spray Booth Air Filters (23)
Activated Carbon Air Filter (25)
High Temperature Air Filter (14)
Pleated Air Filters (28)
Air Purifier Filters (13)
Laminar Flow Cabinet (12)
Pass Box (12)
Detailed Product Description
Product Name: Pleated Filter Media Dimension: 595x595x45mm, 595x595x95mm
Efficiency: G2 G3 G4 ISO 16890: EPM Coarse 75-92%
Construction: Pack Appliacation: Primary Pre Filter For HVAC
Material: Synthetic Fiber Color: White/Green/Blue
High Light:

Pleated Filter Media G4 Grade

,

High Load Synthetic Pleated Filter Media

,

High Load Synthetic Media

KLAIR Pleated Filter Media, High Load Synthetic Media, G4 Grade, 595X595X45 MM





Descriptions:



Pleated Filter Media Pack available for those Air Filter Maker, minimumize the package size at the background of super high sea freight,

easy to use



Parameters:



  • Media: Synthetic fibre
  • Efficiency: G2, G3, G4
  • Average Arrestance:  75-92% @5μm
  • Initial resistance: 35-45 Pa
  • Recommended final pressure drop : 200Pa
  • Humidity resistance: 90%RH
  • Max Temperature: 60 ℃
  • DIN 53438 Flammability: F1
  • UL 900 Standard :  Class 2
  • Air flow rate:  2.5m/s
  • Media color available: White, Green, Blue



Specifications:



Part No. Dimension Effciency No.Pleats
PPM-242402 595x595x45mm MERV 9-14 20-28
PPM-202402 495x595x45mm MERV 9-14 16-24
PPM-122402 595x595x45mm MERV 9-14 12-20

Other dimensions avaiable upon request.


Competitive Advantage:



  • Low Initial Pressure drop
  • Static-charged for high dust holding capacity
  • Mesh laminated on media firmly, won't loose during pleating.

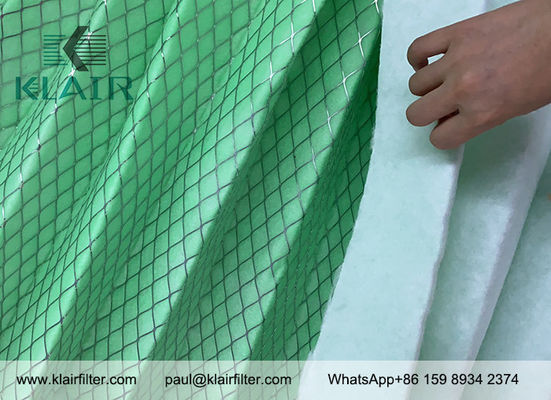

Product Picture:

High Load Synthetic Pleated Filter Media G4 Grade 0

High Load Synthetic Pleated Filter Media G4 Grade 1
