Air Conditioner Pleated Air Filters Synthetic 24 X 24 X 22 For Gas Turbine

Air Conditioner Pleated Air Filters Synthetic 24 X 24 X 22 For Gas Turbine

    • Air Conditioner Pleated Air Filters Synthetic 24 X 24 X 22 For Gas Turbine
    • Air Conditioner Pleated Air Filters Synthetic 24 X 24 X 22 For Gas Turbine
  • Air Conditioner Pleated Air Filters Synthetic 24 X 24 X 22 For Gas Turbine

    Product Details:

    Place of Origin: China
    Brand Name: KLAIR
    Certification: EUROVENT
    Model Number: MANIPAK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: Carton + Pallet Crate
    Delivery Time: 5-8 Days
    Payment Terms: T/T, LC, Western Union
    Supply Ability: 500 PCS Per Week
    Contact Now
    Detailed Product Description
    Product Name: Air Filter In AC EN779: G3 G4 M5 M6 F6 F7 F8 F9
    Frame: Aluminum Or Galvanized Steel Dimension: 24" X 24" X 22"
    Media: 100% Synthetic Fire Classifications: F1 Or UL-2
    High Light:

    pleated panel filter

    ,

    pleated furnace filters

    Fine Filtration Air Filter In AC , Air Conditioner Air Filter For Gas Turbine





    Applications:



    Air Filter In AC for general ventilation and air conditioning equipment installed in offices, shopping centers, schools, theaters, hotels, industiral plants. Food processing facilities, laboratories etc. Also as pre-filter in the supply air units for car paint spray cabins, as well as pre-filter for electrical equipment electric motors and super-fine and absolute HEPA filtration systems.



    Description:



    The bag filters are 100% synthetic, corrosion-free and humidity-resistant product. It conforms to all European Union and U.S.fire classfications ( e.g.DIN 53438-F1 and UL-2). The pocket medium is inherently rigid, with a welded rib construction to form a pocket with the highest possible functional security in even the most brutal air-pressure and high dust-laden environments. The leak-free construction, the incorporated aerodynamic spacers and the embedded medium in a formstable rein-forced metal fromt-header guarantee highest performance in most environments.

    Constant quality is assured by independent quality control according to EN-779.







    Specifications:



    Size(HxWxD)mm

    No.of Pockets

    Rated Airflow(CFM)

    Initial Resistance(Pa)

    595x595x600

    8

    2000

    85

    595x595x600

    6

    1650

    85

    595x595x381

    8

    1500

    85

    595x595x381

    6

    1250

    85

    595x495x600

    6

    1650

    85

    595x495x600

    4

    1000

    85

    595x295x600

    4

    1000

    85

    595x295x600

    3

    750

    85

    595x295x381

    4

    750

    85

    Other sizes is available!



    Description:



    • Media: Dual layer progressively structured  synthetic fibre
    • Frame: GI; AI
    • Efficiency range from G4 (EN 779)
    • Average Efficiency:  35%;
    • Initial resistance: 45 Pa
    • Recommended final pressure drop : 400Pa
    • Humidity resistance: 100%
    • Max Temperature: 90 ℃
    • DIN 53438 Flammability: F1
    • UL 900 Standard :  Class 2
    • Max.air flow rate:  125% of rated air flow
    • Media color available: White;Green;Pink;Yellow;Purple.
    • Filter standard depth available 15 inch (381mm); 24 inch(600mm)
    • No stitch holes emission.
    • Gasket: EVA
    •

    Competitive Advantage:



    • Ensure a long operation reliability and high dust holding capacity
    • Low initial pressure drop,high efficiency.
    • To catch the coarse fine dust and microorganism efficiently.
    • Offer different pocket number design to meet different airflow requirements.
    • Special Characteristics of Each Fine Filter Class

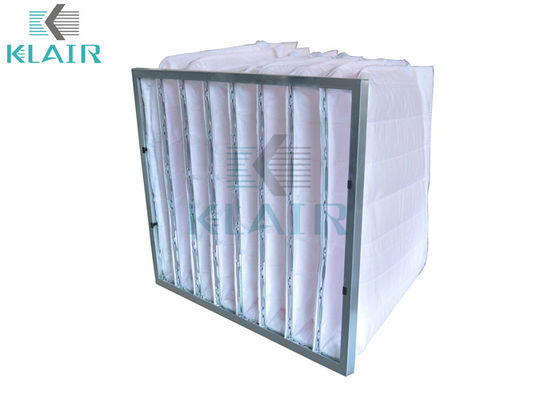

    Product Image:





    Air Conditioner Pleated Air Filters Synthetic 24 X 24 X 22 For Gas Turbine 0

    Air Conditioner Pleated Air Filters Synthetic 24 X 24 X 22 For Gas Turbine 1
