KLAIR FILTRATION TECHNOLOGY CO.,LTD

|
| Place of Origin: | Guangdong, China |
| Brand Name: | Klair Filter |
| Certification: | ISO 16890 |
| Minimum Order Quantity: | 1per |
|---|---|
| Price: | USD25-35 |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 500pieces/everyday |
| Frame: | Aluminum/Galvanzied Frame | Media: | Ultra Fine Glass Fiber |
|---|---|---|---|
| Media Guard: | Aluminium Mesh/Painting Finished Expanded Mesh | Fiber Class According To EN1822:2009: | H10-H14 |
| Fiber Class According To ASHRAE 52.2-2007: | MERV15-MERV19 | Efficiency: | 99.999%,99.99%,99.97%,95% At 0.3μm |
| Maximum Temperature: | 70ºC | Maximum Relative Humidity: | 100% |
| Customized Size: | Available | ||
| High Light: | H14 HEPA Air Purifier Filter,MERV19 HEPA Air Purifier Filter,Mini Pleat HEPA Air Filter |
||

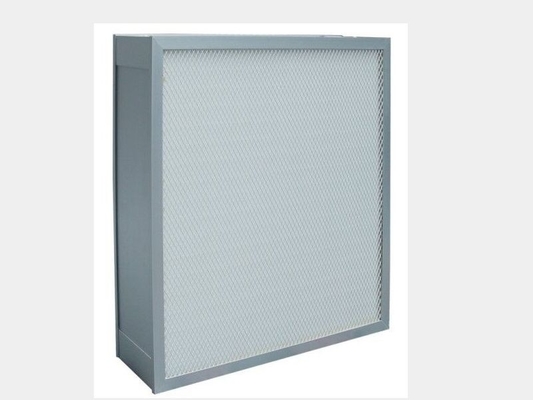

High Efficiency H14 Mini Pleat HEPA Air Purifier Filter for Clean Room
Applications:
Mainly used in terminal filtration of electronics, Bio,pharmaceutical industries,hospitals,,FFU,Laminar flow devices,and other clean room equipments.
Apply to air conditioning unit terminal filters and all kinds of large air volume air purification equipment
It is suitable for end filtration in ventilation equipment, dust removal equipment and air supply system with high cleanliness level requirements.
Features:
1, Large holding capacity
2, High efficiency,
3, Big air volume,
4, Easily installation
5, Low running cost,
Efficiency: 99.995%
Advantages:
* Mini pleat design ensures low resistance to airflow
* Seamless sealing technology
* Uniform air flow, high efficiency,low resistance
* Anti-aging technology,long service life
Specifications:
Frame: Aluminum/Galvanzied Frame
Media: Ultra fine glass fiber
Media guard:Aluminium mesh/Painting finished expanded mesh
Fiber class according to EN1822:2009 : H10-H14
Fiber class according to ASHRAE 52.2-2007:MERV15-MERV19
Efficiency: 99.999%,99.99%,99.97%,95% at 0.3μm
(DOP/PSL/PAO Counting method)
Maximum temperature: 70ºC
Maximum relative humidity: 100%
Customized size: Available
Technical Data Sheet:
| PARTNUMBER | FILTER DIMENSIONS (HxWxD) NOMINAL(inch)ACTUAL(mm) | RATED A ( cfm ) | IRFLOw ( m3/h) | PRESSURE DROP (Max.Initial ) ("w.g ) ( pa) | WEIGHT EACH (lbs) ( kgs) | |||
| EFFICIENCY99.97%@flow 250FPM/1.25m/s | ||||||||
| HP-08191 | 12x12x03 | 305 x305 x69 | 150 | 250 | 0.64 | 160 | 3.3 | 1.5 |
| HP-08192 | 24x12x03 | 610x 305 x69 | 300 | 5oo | 0.64 | 160 | 10 | 4.5 |
| HP-08193 | 24x 24x03 | 610x610x69 | 410 | 700 | 0.64 | 160 | 11 | 5 |
| HP-08194 | 24x30x03 | 610x762 x69 | 450 | 8o0 | 0.64 | 160 | 14 | 6.5 |
| HP-08195 | 24x36x03 | 610x915x69 | 550 | 950 | 0.64 | 160 | 17.5 | 8 |
| HP-08196 | 24×48xO3 | 610x1220×69 | 700 | 1200 | 0.64 | 160 | 22 | 10 |
| HP-08197 | 12x12x31/2 | 305 x 305 x80 | 176 | 300 | 0.64 | 160 | 4.4 | 2 |
| HP-08198 | 24x12x3 1/2 | 610x305 x80 | 380 | 650 | 0.64 | 160 | 11 | 5 |
| HP-08199 | 24x24x3 1/2 | 610x610x80 | 510 | 880 | 0.64 | 160 | 12 | 5.5 |
| HP-08200 | 24x 36x3 1/2 | 610x915x80 | 600 | 1050 | 0.64 | 160 | 20 | 9 |
| HP-08201 | 24x48x31/2 | 610x1220x80 | 820 | 1400 | 0.64 | 160 | 26 | 12 |
| HP-O8202 | 12x12x04 | 305 x305x96 | 235 | 400 | 0.64 | 160 | 6.6 | 3 |
| HP-08203 | 24x12x04 | 610x305 x96 | 500 | 850 | 0.64 | 160 | 13 | 6 |
| HP-08204 | 24x24x04 | 610x610x96 | 600 | 1050 | 0.64 | 160 | 15 | 7 |
| HP-08205 | 24x 36x04 | 610×915x96 | 700 | 1200 | 0.64 | 160 | 23 | 10.5 |
| HP-08206 | 24x48x04 | 610x1220x96 | 1050 | 1800 | 0.64 | 160 | 31 | 14 |
