Synthetic Filter Media Rolls , Air Filter Media With High Dust Holding Capacity

Synthetic Filter Media Rolls , Air Filter Media With High Dust Holding Capacity

  • Synthetic Filter Media Rolls , Air Filter Media With High Dust Holding Capacity
  • Synthetic Filter Media Rolls , Air Filter Media With High Dust Holding Capacity
Synthetic Filter Media Rolls , Air Filter Media With High Dust Holding Capacity
Product Details:
Place of Origin: China
Brand Name: KLAIR
Certification: ISO 16890
Model Number: Amertex R50
Payment & Shipping Terms:
Minimum Order Quantity: 1 Rolls
Price: Negotiable
Packaging Details: Carton + Pallet Crate
Delivery Time: 5-8 Days
Payment Terms: T/T, LC, Western Union
Supply Ability: 500 PCS Per Week
Contact Now
Detailed Product Description
Name: Filter Media Roll Efficiency: G2 G3 G4
Material: Synthetic Fibers Color: White
Flame: F1 Roll Size: 20m X 1m / 2m
High Light:

paint booth filters

,

paint booth exhaust filters

,

Synthetic Filter Media Rolls

High Dust Holding Capacity G2 - G4 Synthetic Filter Media Roll With Progressive Density





Applications:



Filter Media Roll is mainly applicable to collect the larger dust molecules in the air to prevent the medium filter from being filled and blocked with larger dusts so early and keep longer service life and better filtration effect.It is made of super hard fiber and is sprayed with a kind of adhensive evenly for strengthening, and so it has a better primary filtration.



Parameters:

  • General Description: Primary filter media, air filter material
  • Weight:250g/m2;300g/m2;400g/m2
  • Thickness: 10/15/20mm
  • Air Flow Rate: 1980m3/hr
  • Initial resistance:15Pa
  • Final resistance: 200Pa
  • Media Arrestance:77.4%
  • Air velocity: 0.55m/s
  • Dust Holding: 285g/sqm
  • Max Temperature: 110 C
  • Filtration Class:G2/G3/G4(DIN 24185)
  • Flame Resistance: F1(DIN 53438)
  • Specification: 2mx20m



Competitive Advantage:



  • Low initial resistance
  • For general air conditioning system
  • Progressively fiber density structure
  • Supply rolls or cut to pads

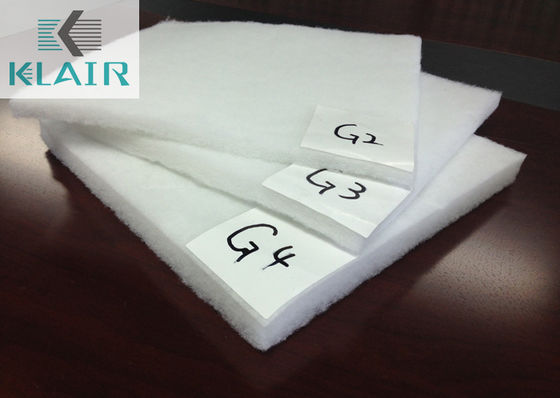

Close Picture:



Synthetic Filter Media Rolls , Air Filter Media With High Dust Holding Capacity 0
