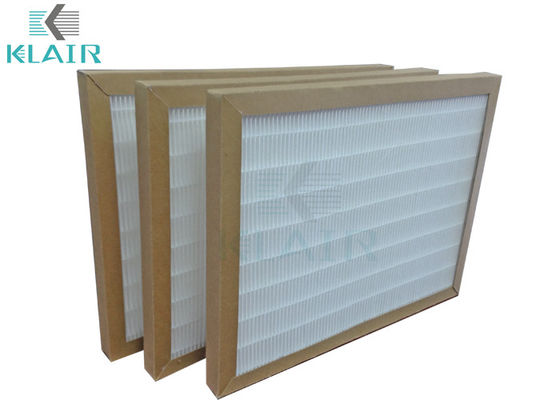

Waterproof Cardboard Air Filter With High Dust Holding Capacity 400 x 400 x 50mm

Waterproof Cardboard Air Filter With High Dust Holding Capacity 400 x 400 x 50mm

  • Waterproof Cardboard Air Filter With High Dust Holding Capacity 400 x 400 x 50mm
  • Waterproof Cardboard Air Filter With High Dust Holding Capacity 400 x 400 x 50mm
  • Waterproof Cardboard Air Filter With High Dust Holding Capacity 400 x 400 x 50mm
Waterproof Cardboard Air Filter With High Dust Holding Capacity 400 x 400 x 50mm
Product Details:
Place of Origin: China
Brand Name: KLAIR
Certification: CE
Model Number: Air Purifier Filter
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: USD 2-10 PER UNIT
Packaging Details: CARton + Pallet Crate
Supply Ability: 500 PCS PER WEEK
Contact Now
Detailed Product Description
Name: Air Purifier Filter Media: PP + PET
Frame Material: Cardboard Size: 400 X 400 X 50mm
Class: F7 Or 85% On EPM1 Construction: Mini Pleat Filter
High Light:

hepa filter air purifier

,

air filtration system

,

400 x 400 x 50mm Air Purifier Filter

Waterproof Cardboard High Dust Holding Mini Pleat Air Purifier Filter Air Cleaner Filter





Description:



We have automatic production line, and we can produce the cartridges with different specifications. If the material is PP, PET, PE, panel height ranges from 8mm to 90mm. For glass-fiber kind of filter cartridges, available sizes are: 25[40], 35[50], 52[70], 63[80], 75[80, 96], 83[96], brackets figure shows the finished product filter thickness.


Max width: 710mm; indefinite length.

Detailed Information


1. Waviness of pleat block along length be kept to a minimum
2. Pleat blocks are much more flat
3. Minimum pleat height is 8mm, maximum height is 80mm
4. Glue beads runs the length of the element
5. Normal distance between two glue beads of the element is 50.8mm(adjustable according to requirement)

6. High efficiency with very low pressure drop e.g. per H13 grade, HEPA with our material, pressure drop only about 1/9 to fiberglass media


Product Property:



Activated Carbon Pad can be added on the surface to absorb harmful gas
Electrostatic PP or glass fiber material
Removal of dust, pollens, mold spores, dust mites, and other allergens.
Removal of many bacteria.
Solid particles captured are not released into the air again.

Application:



Air purifier, air filtration system etc.



Specifications:



Made as per your request.



Mini Pleat Construction:



Waterproof Cardboard Air Filter With High Dust Holding Capacity 400 x 400 x 50mm 0
