Cardboard Frame Hvac Pre Filter , Pleated Panel HVAC Furnace Filter G4

Cardboard Frame Hvac Pre Filter , Pleated Panel HVAC Furnace Filter G4

    • Cardboard Frame Hvac Pre Filter , Pleated Panel HVAC Furnace Filter G4
    • Cardboard Frame Hvac Pre Filter , Pleated Panel HVAC Furnace Filter G4
  • Cardboard Frame Hvac Pre Filter , Pleated Panel HVAC Furnace Filter G4

    Product Details:

    Place of Origin: China
    Brand Name: KLAIR
    Certification: EUROVENT
    Model Number: GGuard HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: Carton + Pallet Crate
    Delivery Time: 5-8 Days
    Payment Terms: T/T, LC, Western Union
    Supply Ability: 500 PCS Per Week
    Contact Now
    Detailed Product Description
    Product Name: G4 Filter Dimension: 24" X 24" X 2"
    Efficiency: MERV 8 ISO 16890: EPM10 50%
    Material: Synthetic Appliacation: Air Handlers

    Disposable Cardboard Frame AC Pre Filter Pleaated Panel Furance G4 Filter





    Applications:



    For Pre filter dust filtration in Aerial engineering plants and devices of all kinds air conditioning and paint shops.



    Parameters:



    • Media: Progressive density Synthetic fibre
    • Frame: Water-resistance cardboard; GI; AI
    • Efficiency: MERV 8 ASHRAE 52.2
    • Average Arrestance:  80% @0.5μm;95%@0.5μm;
    • Initial resistance: 45 Pa
    • Recommended final pressure drop : 250Pa
    • Humidity resistance: 90%RH
    • Max Temperature: 80 ℃
    • DIN 53438 Flammability: F1
    • UL 900 Standard :  Class 2
    • Max.air flow rate:  125% of rated air flow
    • Media color available: Blue; White; Green
    • Filter standard depth available 1 inch (21mm); 2 inch(46mm) and 4 inch(96mm)
    • Galvanized supporting grid to ensure strength construction in diamond or square shape.



    Specifications:



    Nominal Size

    WxHxD.inch

    Actual Size

    WxHxD.mm

    Rated Airflow(CFM)

    Nominal Size

    WxHxD.inch

    Actual Size

    WxHxD.mm

    Rated Airflow(CFM)

    20x18x1

    495x445x21

    1500

    20x20x2

    495x495x46

    2363

    20x20x1

    495x495x21

    1650

    24x12x2

    595x295x46

    1700

    22x22x1

    546x546x21

    2000

    24x18x2

    595x445x46

    2550

    24x10x1

    595x241x21

    1000

    24x20x2

    595x495x46

    2839

    24x12x1

    595x295x21

    1190

    24x24x2

    595x595x46

    3400

    24x14x1

    595x343x21

    1394

    25x14x2

    619x343x46

    2000

    24x16x1

    595x394x21

    1650

    25x15x2

    619x368x46

    2210

    24x18x1

    595x445x21

    1785

    25x18x2

    619x445x46

    2660

    24x20x1

    595x495x21

    1980

    20x16x4

    495x394x96

    1870

    24x24x1

    595x595x21

    2380

    20x20x4

    495x495x96

    2363

    16x16x2

    394x394x46

    1513

    24x12x4

    595x295x96

    1700

    20x10x2

    495x241x46

    1200

    24x16x4

    595x394x96

    2261

    20x14x2

    495x343x46

    1658

    24x18x4

    595x445x96

    2550

    20x15x2

    495x368x46

    1777

    24x20x4

    595x495x96

    2839

    20x16x2

    495x394x46

    1870

    24x24x4

    595x595x96

    3400

    20x18x2

    495x445x46

    2125

    25x25x4

    619x619x96

    3690

    Special sizes on request.



    Competitive Advantage:



    • Low maintained pressure drop for longer filter life
    • High wet-strength beverage board frame creates a rigid and durable enclosure
    • Welded wire media backing to maintain radial pleat configuration
    • Available in 1", 2" and 4" depths
    • Excellent choice for those who change filters based upon time or PM program



    Product Picture:

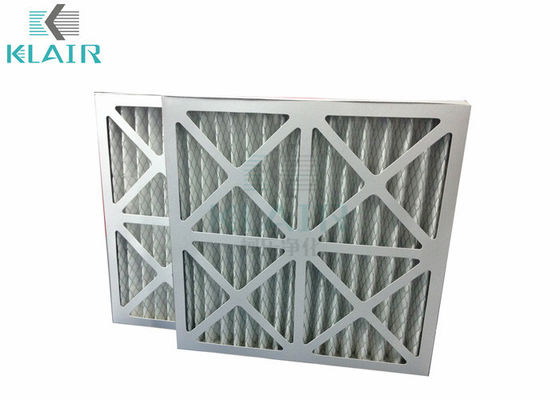

    Cardboard Frame Hvac Pre Filter , Pleated Panel HVAC Furnace Filter G4
