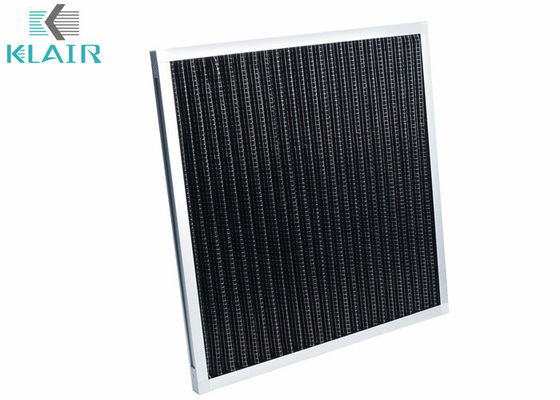

Pleated Panel Activated Carbon Air Filter For Unpleasant Smell Filtration

Pleated Panel Activated Carbon Air Filter For Unpleasant Smell Filtration

  • Pleated Panel Activated Carbon Air Filter For Unpleasant Smell Filtration
  • Pleated Panel Activated Carbon Air Filter For Unpleasant Smell Filtration
Pleated Panel Activated Carbon Air Filter For Unpleasant Smell Filtration
Product Details:
Place of Origin: China
Brand Name: KLAIR
Certification: EUROVENT
Model Number: BlackGuard CP
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Carton + Pallet Crate
Delivery Time: 5-8 Days
Payment Terms: T/T, LC, Western Union
Supply Ability: 500 PCS Per Week
Contact Now
All Products
Bag Air Filters (33)
HVAC Air Filters (28)
HEPA Air Filter (44)
Fan Filter Unit FFU (29)
Cleanroom Air Shower (26)
Spray Booth Air Filters (23)
Activated Carbon Air Filter (25)
High Temperature Air Filter (14)
Pleated Air Filters (28)
Air Purifier Filters (13)
Laminar Flow Cabinet (12)
Pass Box (12)
Detailed Product Description
Product Name: Carbon Air Filter Usage: Odor And Gas Filtration
Dimension: 24" X 24" X 2" Application: General Ventilation System
Material: Carbon Synthetic Type: Pleated Panel
High Light:

carbon odor filter

,

activated charcoal filter

Activated Carbon Filter , Pleated Activated Carbon Air Filter For Filtration Of UnPleasant Smell





Applications:



The Carbon filter are used for filtration of airborne particles, odors, smoke, noxious gas in civil and industrial air conditioning systems. It is commonly also used as pre-filtration stage for fine dust filters.



Description:



  • Media: Activated carbon  fiber or Activated carbon felt
  • Frame: Aluminium or Galvanized steel
  • Average arrestance: 92%
  • Gasket: EVA foam.
  • Recommended final pressure drop:200 Pa
  • Humidity resistance: 60%
  • Max Temperature: 80 ℃
  • DIN 53438 Flammability: F1
  • UL 900 Standard :  Class 2
  • Max.air flow rate:  125% of rated air flow
  • Media color available: black
  • Filter standard depth available 2 inch(46mm) and 4 inch(96mm)
  • Galvanized mesh protection in air down steam side.



Specifications:



Nominal Size

WxHxD.inch

Actual Size

WxHxD.mm

Rated Airflow(m3/hr)

Initial Pressure

Drop (Pa)

Removal Efficiency (%)

24x24x1

595x595x21

1600





40





Depending on field condition

20x24x1

495x595x21

1350

12x24x1

295x595x21

800

24x24x2

595x595x46

3200

20x24x2

495x595x46

2700

12x24x2

295x595x46

1600

Other sizes is available!



Competitive Advantage:

  • High efficiency activated carbon powder.
  • Pleated media to enlarge filtration area.
  • For chemical and hospital application where gas removal required.

Product Picture:



Pleated Panel Activated Carbon Air Filter For Unpleasant Smell Filtration 0Pleated Panel Activated Carbon Air Filter For Unpleasant Smell Filtration 1
